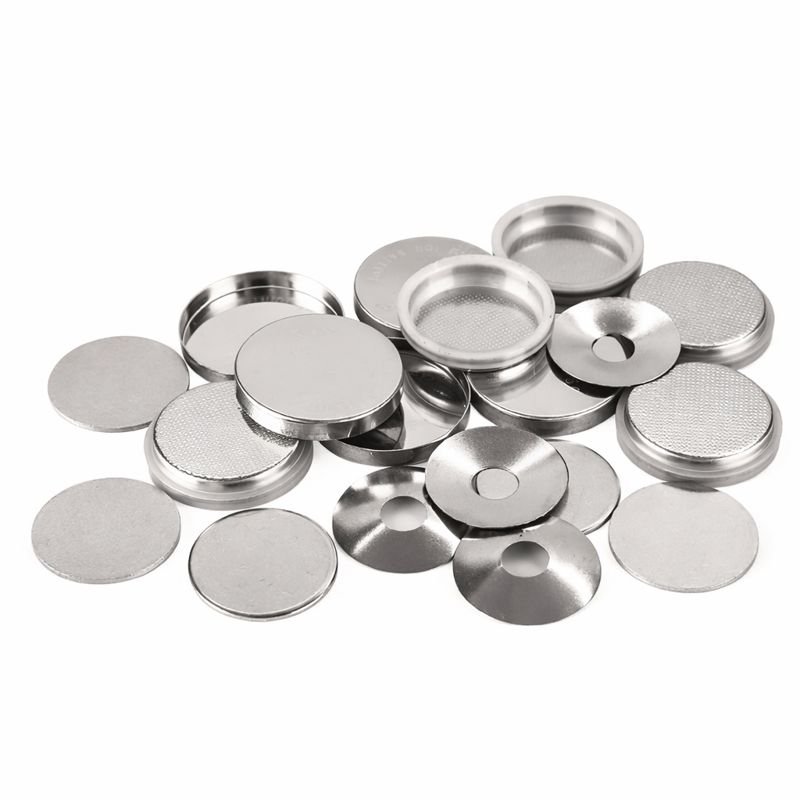

CR/LIR Multi-Size Coin Cell Case Set (2016/2025/2032/2430/2450, 100 Sets/Pack)
Battery Case

CR/LIR Multi-Size Coin Cell Case Set (2016/2025/2032/2430/2450, 100 Sets/Pack)

£143.99

Select an option to request a quote

Flat rate shipping £15

    Product: CR/LIR Multi-Size Coin Cell Case Set (2016/2025/2032/2430/2450, 100 Sets/Pack)

    Application: Coin cell assembly for lithium-ion and lithium metal battery research

    Product Overview: Complete case sets covering the CR/LIR2016, 2025, 2032, 2430 and 2450 form factors, so a single order can support testing across several coin cell geometries. Each configuration ships as a matched set of case and gasket, with a spring included where the format calls for one, supplied 100 sets per pack. Both 304 and 316 stainless steel are offered; 316 is the usual choice where the electrolyte is chloride-bearing or otherwise corrosive.

    Available Configurations:
    CR/LIR2016 case + 0.5 mm-thick Gasket / 304 Stainless Steel / 100 Sets per Pack
    CR/LIR2016 case + Dia. 15.5 x 0.5 mm-thick Gasket / 316 Stainless Steel / 100 Sets per Pack
    CR/LIR2025 case + Dia. 15.5 x 0.2 mm-thick Gasket + Dia. 15.4 x 0.2 mm-thick, 1.2 mm-high Spring / 304 Stainless Steel / 100 Sets per Pack
    CR/LIR2025 case + Dia. 15.5 x 0.5 mm-thick Gasket + Dia. 15.4 x 0.2 mm-thick, 1.2 mm-high Spring / 304 Stainless Steel / 100 Sets per Pack
    CR/LIR2025 case + Dia. 15.5 x 0.5 mm-thick Gasket + Dia. 15.4 x 0.25 mm-thick, 1.2 mm-high Spring / 316 Stainless Steel / 100 Sets per Pack
    CR/LIR2025 case + Dia. 15.8 x 1.0 mm-thick Gasket + Dia. 15.4 x 0.2 mm-thick, 1.2 mm-high Spring / 304 Stainless Steel / 100 Sets per Pack
    CR/LIR2032 case + Dia. 15.5 x 0.5 mm-thick Gasket + Dia. 15.4 x 0.2 mm-thick, 1.2 mm-high Spring / 304 Stainless Steel / 100 Sets per Pack
    CR/LIR2032 case + Dia. 15.5 x 0.5 mm-thick Gasket + Dia. 15.4 x 0.2 mm-thick, 1.5 mm-high Spring / 304 Stainless Steel / 100 Sets per Pack
    CR/LIR2032 case + Dia. 15.5 x 0.5 mm-thick Gasket + Dia. 15.4 x 0.25 mm-thick, 1.2 mm-high Spring / 316 Stainless Steel / 100 Sets per Pack
    CR/LIR2032 case + Dia. 15.8 x 1.0 mm-thick Gasket + Dia. 15.4 x 0.2 mm-thick, 1.2 mm-high Spring / 304 Stainless Steel / 100 Sets per Pack
    CR/LIR2032 case + Dia. 15.8 x 1.0 mm-thick Gasket + Dia. 15.4 x 0.25 mm-thick, 1.2 mm-high Spring / 316 Stainless Steel / 100 Sets per Pack
    CR/LIR2430 case + Dia. 20 x 1.0 mm-thick Gasket + Dia. 19.8 x 0.2 mm-thick Spring / 304 Stainless Steel / 100 Sets per Pack
    CR/LIR2450 case + Dia. 20 x 1.0 mm-thick Gasket + Dia. 19.8 x 0.2 mm-thick Spring / 304 Stainless Steel / 100 Sets per Pack
