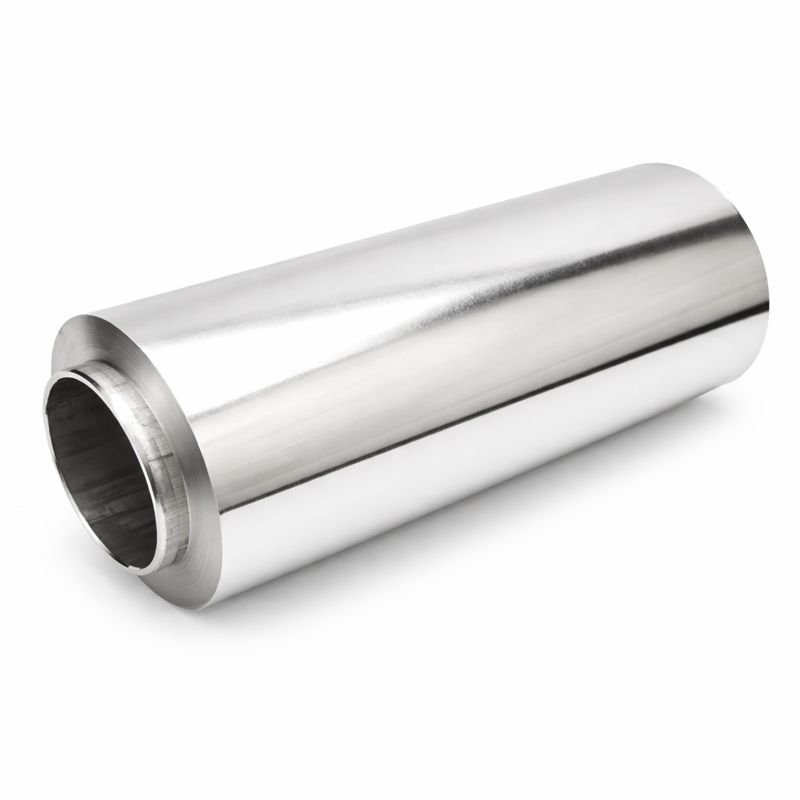

Battery-Grade Single/Double-Sided Shiny Aluminum Foil
Current Collector

Battery-Grade Single/Double-Sided Shiny Aluminum Foil

Price range: £191.99 through £274.99

Select an option to request a quote

Flat rate shipping £15

    Battery-Grade Aluminum Foil
    Application: Cathode Current Collector for Batteries
    Product Overview: Single/Double-sided shiny aluminum foil designed specifically for use as a cathode current collector in battery applications.
    Material Grade: 1235
    Areal Density (thickness-dependent): approx. 27 g/m² (10 µm), 32 g/m² (12 µm), 41 g/m² (15 µm), 43 g/m² (16 µm)
    Tensile Strength: >= 200 MPa
    Elongation: >= 2%
    Wetting Tension (Dyne Value): >= 30 mN/m
    Core Inner Diameter: 76.2 mm
    Chemical Composition:
    – Aluminum (Al): > 99.35%
    – Silicon (Si): < 0.25%
    – Copper (Cu): < 0.05%
    – Zinc (Zn): < 0.1%
    – Manganese (Mn): < 0.05%
    – Iron (Fe): < 0.3%
    Approximate Length per kg:
    – 180 mm Width: ~129 m/kg
    – 200 mm Width: ~116 m/kg
    – 280 mm Width: ~83 m/kg
    Packaging & Storage:
    – Packaging: Wrapped in white EPE foam, packed in aluminum-plastic film.
    – Storage Conditions: Keep in a dry environment (Humidity <= 65%), away from moisture and reactive chemicals.

    Option 1

    10 um x 150 mm, Double-Sided Shiny, 5 kg/roll, 10 um x 280 mm, Single-Sided Shiny, 5 kg/roll, 12 um x 280 mm, Single-Sided Shiny, 5 kg/roll, 12 um x 300 mm, Double-Sided Shiny, 5 kg/roll, 15 um x 280 mm, Single-Sided Shiny, 5 kg/roll, 16 um x 180 mm, Single-Sided Shiny, 5 kg/roll, 16 um x 200 mm, Single-Sided Shiny, 10 kg/roll, 16 um x 200 mm, Single-Sided Shiny, 5 kg/roll, 16 um x 260 mm, Double-Sided Shiny, 5 kg/roll, 16 um x 280 mm, Single-Sided Shiny, 5 kg/roll
