Magnesium Oxide (MgO) Single Crystal Wafers
MgO

Magnesium Oxide (MgO) Single Crystal Wafers

Price range: $850.63 through $1,067.82

Select an option to request a quote

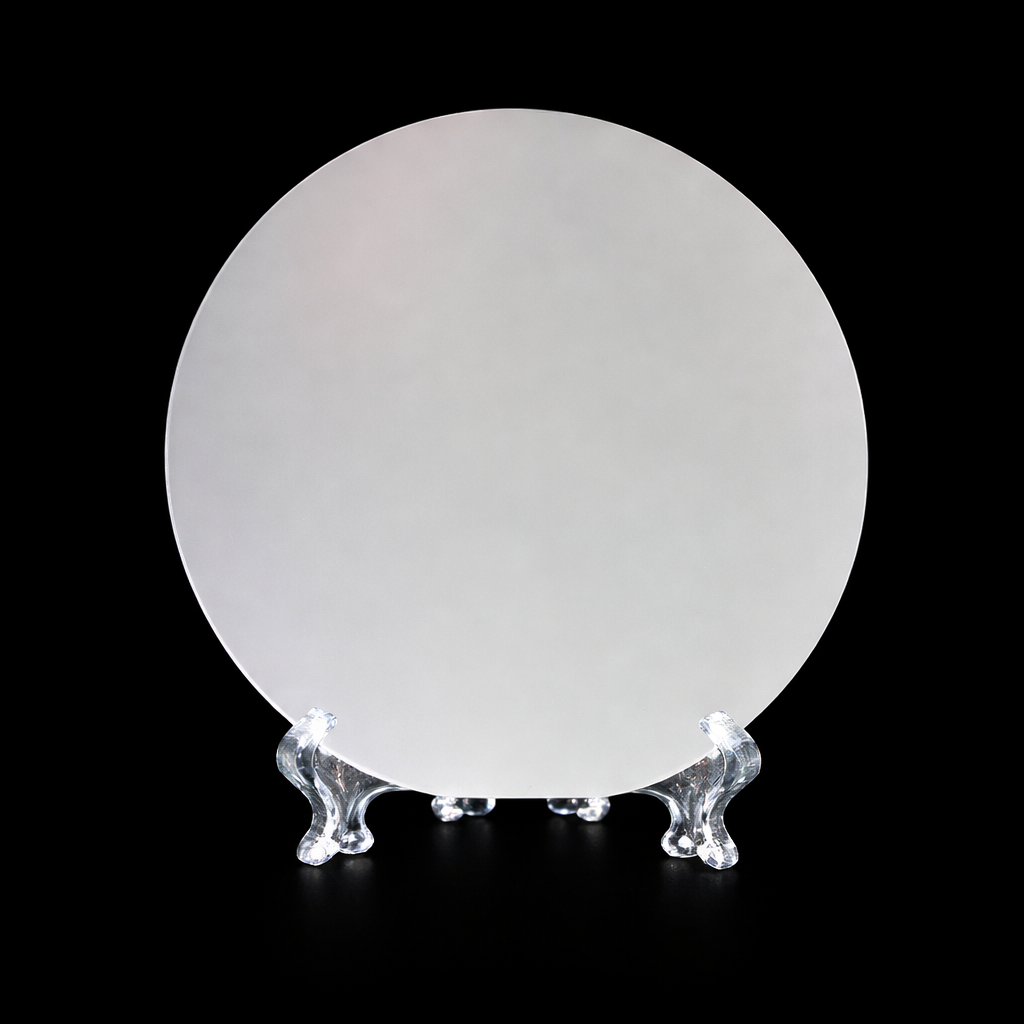

Magnesium Oxide (MgO) Single Crystal Wafer

Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a = 4.216 Angstrom
– Density: 3.58 g/cm³
– Melting Point: 2852 °C
– Mohs Hardness: 5.5
– Growth Method: Arc Fusion

Standard Specifications:
– Orientation Accuracy: (100) < 0.3°; (110)/(111) < 0.5°
– Surface Roughness: Ra < 0.5 nm
– Edge Orientation: Available upon request
– Surface Polish: Single-Side or Double-Side Polished

Option 1

2″ dia, (100), Double-Side Polished, 2″ dia, (100), Single-Side Polished, 2″ dia, (110), Double-Side Polished, 2″ dia, (110), Single-Side Polished, 2″ dia, (111), Double-Side Polished, 2″ dia, (111), Single-Side Polished
