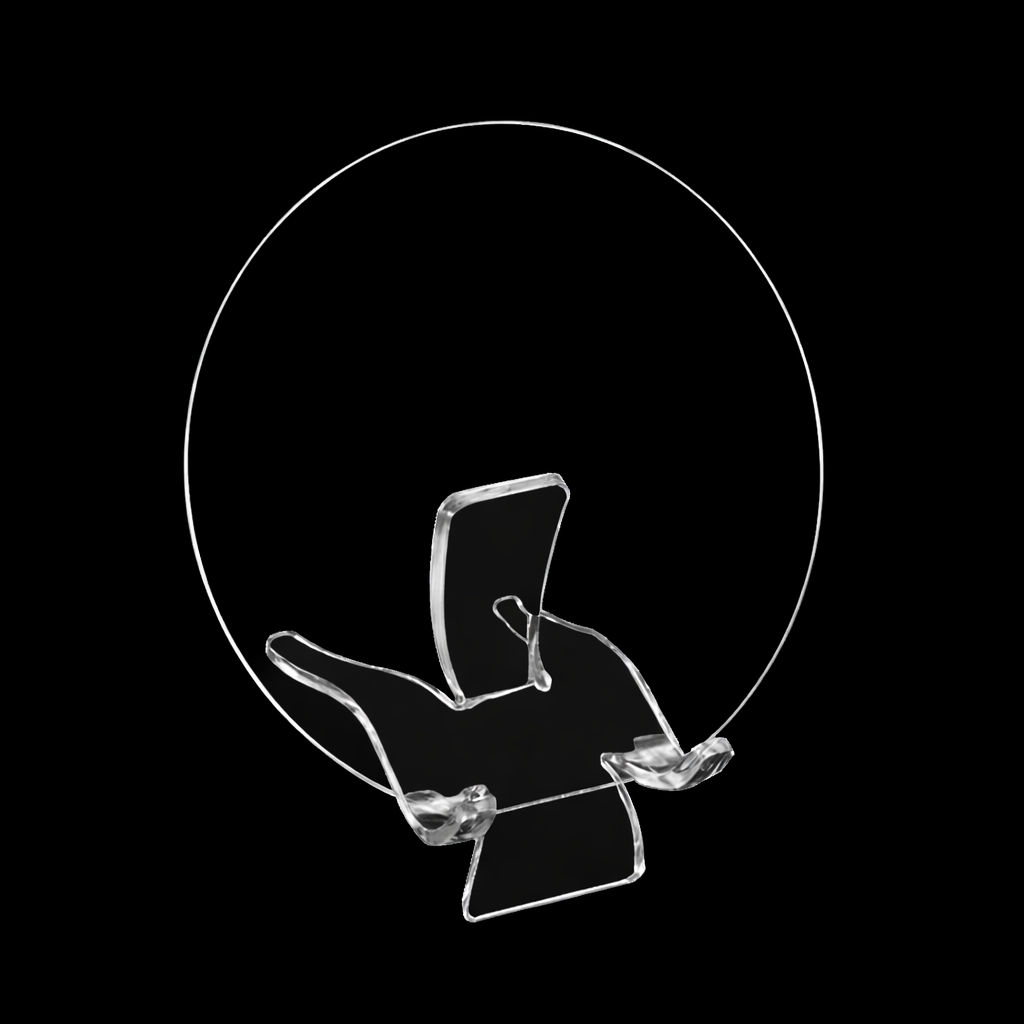

Magnesium Fluoride (MgF₂) Single Crystal Wafers
Physical Properties:
– Crystal Structure: Tetragonal System
– Lattice Constant: a = 4.62 Angstrom, c = 3.04 Angstrom
– Density: 3.18 g/cm³
– Melting Point: 1255 °C
– Mohs Hardness: 6
– Growth Method: Bridgman
Standard Specifications:
– Orientation Accuracy: miscut < 0.3° (< 0.1° available upon request)
– Surface Roughness: Ra < 0.5 nm
– Edge Orientation: Available upon request
– Surface Polish: Single-Side or Double-Side Polished
| Option 1 | Ø2 mm × 0.5 mm, (001), Double-Side Polished, Ø2 mm × 0.5 mm, (001), Single-Side Polished, Ø2 mm × 0.5 mm, (100), Double-Side Polished, Ø2 mm × 0.5 mm, (100), Single-Side Polished, Ø2 mm × 0.5 mm, (110), Double-Side Polished, Ø2 mm × 0.5 mm, (110), Single-Side Polished |
|---|
