Iridium (Ir) Sputtering Target, 99.95% Purity, Circular (Request Current Price)

Iridium (Ir) Sputtering Target, 99.95% Purity, Circular

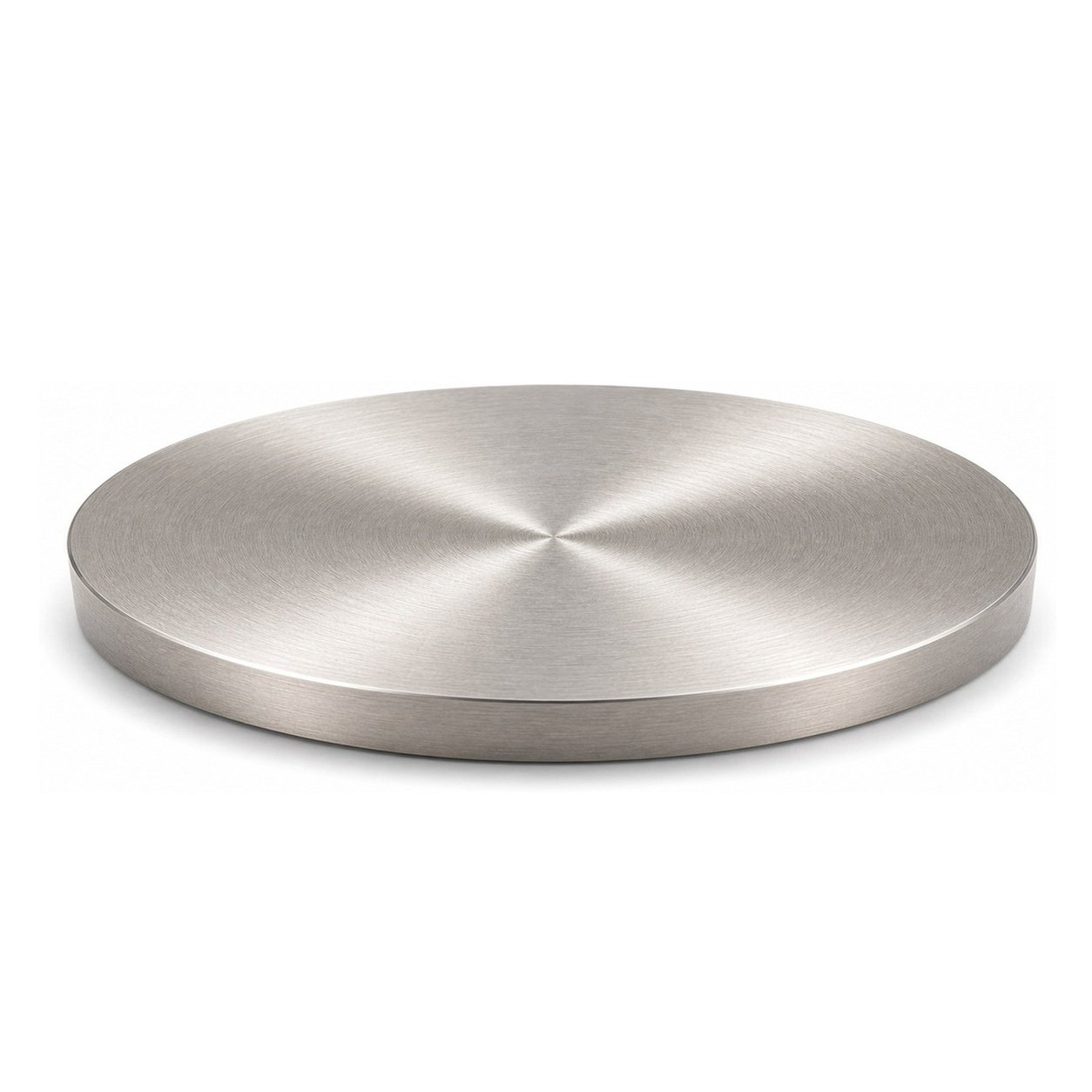

Nanostore’s Iridium (Ir) sputtering target is a 99.95% purity noble metal PVD source material for magnetron sputtering, ion sputtering, and laboratory thin-film deposition. It is supplied in circular target formats for research, development, and small-batch process work.

Key Features

Source Material
Supplied as 99.95% Purity for thin-film workflows that require specified source composition.

Circular Target Formats
Available in circular diameters including 1 inch diameter (25.4 mm), 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 3.15 inch diameter (80 mm), 4 inch diameter (101.6 mm), 3.94 inch diameter (100 mm). Thickness and mounting options include 3 mm thick, 4 mm thick, 5 mm thick, 6 mm thick, 2 mm thick, 1 mm thick, 0.2 mm thick, depending on selected configuration.

Controlled Processing and Inspection
Target preparation may include material selection, forming, heat treatment, machining, dimensional inspection, surface finishing, cleaning, and final quality review. Composition and impurity control may be supported by analytical methods such as ICP, GDMS, carbon/sulfur analysis, oxygen/nitrogen analysis, and metallographic inspection where appropriate.

Clean Handling and Packaging
Targets are prepared for deposition use with clean surface handling and protective packaging. Store sealed in a dry environment, handle with clean gloves, and avoid direct contact with oil, dust, moisture, or other surface contamination before installation.

Material Properties and Technical Indicators

The following material-property values are provided as reference technical indicators for material selection, source loading, process planning, and thin-film deposition evaluation:

– Element symbol: Ir
– CAS number: 7439-88-5
– Density: 22.56 g·cm⁻³
– Physical state: solid
– Melting point: 2446 °C
– Boiling point: 4428 °C
– Heat of fusion: 41.12 kJ·mol⁻¹
– Specific heat capacity: 25.10 J·mol⁻¹·K⁻¹
– Crystal structure: face-centered cubic
– Thermal expansion coefficient: 6.4 µm·m⁻¹·K⁻¹
– Thermal conductivity: 147 W·m⁻¹·K⁻¹
– Electrical resistivity: (20 °C) 47.1 nΩ·m
– Young’s modulus: 528 GPa
– Shear modulus: 210 GPa
– Bulk modulus: 320 GPa
– Mohs hardness: 6.5
– Vickers hardness: 1760 MPa
– Poisson’s ratio: 0.26

Common Applications

– iridium thin-film deposition; electrode and catalyst coating research; noble-metal contact and corrosion studies; Ir PVD process development
– Academic, industrial, and pilot-scale thin-film process development
