Gold (Au) Sputtering Target, 99.999% (5N) Purity, Circular (Request Current Price)

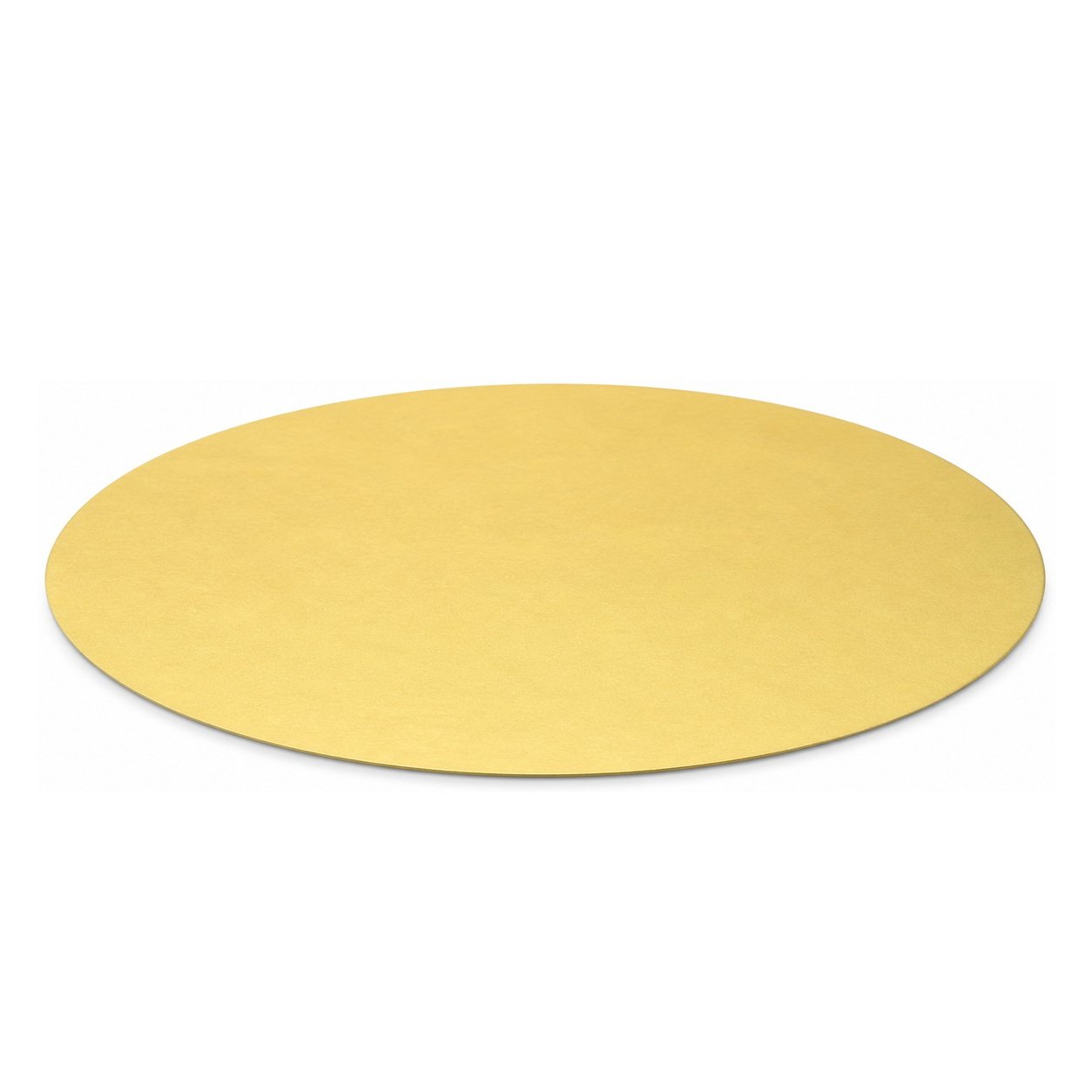

Gold (Au) Sputtering Target, 99.999% (5N) Purity, Circular

Nanostore’s Gold (Au) sputtering target is a high-purity noble-metal PVD source material for magnetron sputtering, ion sputtering, and laboratory thin-film deposition. It is supplied in circular target formats for research, development, and small-batch process work where clean handling, stated dimensions, and material identity are specified.

Key Features

High-Purity Source Material
Supplied at 99.999% (5N) purity for thin-film workflows that require controlled source composition for deposition work.

Circular Target Formats
Available in circular diameters including 1 inch diameter (25.4 mm), 1.97 inch diameter (50 mm), 2 inch diameter (50.8 mm), 2.36 inch diameter (60 mm), 3 inch diameter (76.2 mm), 3.15 inch diameter (80 mm), 4 inch diameter (101.6 mm), 3.94 inch diameter (100 mm). Thickness options include 3 mm thick, 4 mm thick, 5 mm thick, 6 mm thick, 2 mm thick, 1 mm thick, 3.17 mm thick, 6.35 mm thick, 0.5 mm thick, 0.7 mm thick, depending on the selected diameter and target configuration.

Controlled Processing and Inspection
Target preparation may include material selection, forming, heat treatment, precision machining, dimensional inspection, surface finishing, cleaning, and final quality review. Composition and impurity control may be supported by analytical methods such as ICP, GDMS, carbon/sulfur analysis, oxygen/nitrogen analysis, and metallographic inspection where appropriate.

Clean Handling and Packaging
Targets are prepared for deposition use with clean surface handling and protective packaging. Store sealed in a dry environment, handle with clean gloves, and avoid direct contact with oil, dust, moisture, or other surface contamination before installation.

Material Properties and Technical Indicators

The following material-property values are provided as reference technical indicators for material selection, source loading, process planning, and thin-film deposition evaluation:

– Element symbol: Au
– CAS number: 7440-57-5
– Density: 19.30 g·cm⁻³
– Physical state: solid
– Melting point: 1064.18°C
– Boiling point: 2856°C
– Heat of fusion: 12.55 kJ·mol⁻¹
– Specific heat capacity: 25.418 J·mol⁻¹·K⁻¹
– Crystal structure: face-centered cubic
– Magnetic order: diamagnetic
– Thermal expansion coefficient: (25 °C) 14.2 µm·m⁻¹·K⁻¹
– Thermal conductivity: 318 W·m⁻¹·K⁻¹
– Electrical resistivity: (20 °C) 22.14 nΩ·m
– Young’s modulus: 79 GPa
– Shear modulus: 27 GPa
– Bulk modulus: 180 GPa
– Poisson’s ratio: 0.44
– Vickers hardness: 216 MPa
– Mohs hardness: 2.5

Common Applications

– noble-metal electrode films; plasmonics and optical coating studies; microfabrication and device research; thin conductive coating development
– Academic, industrial, and pilot-scale thin-film process development
