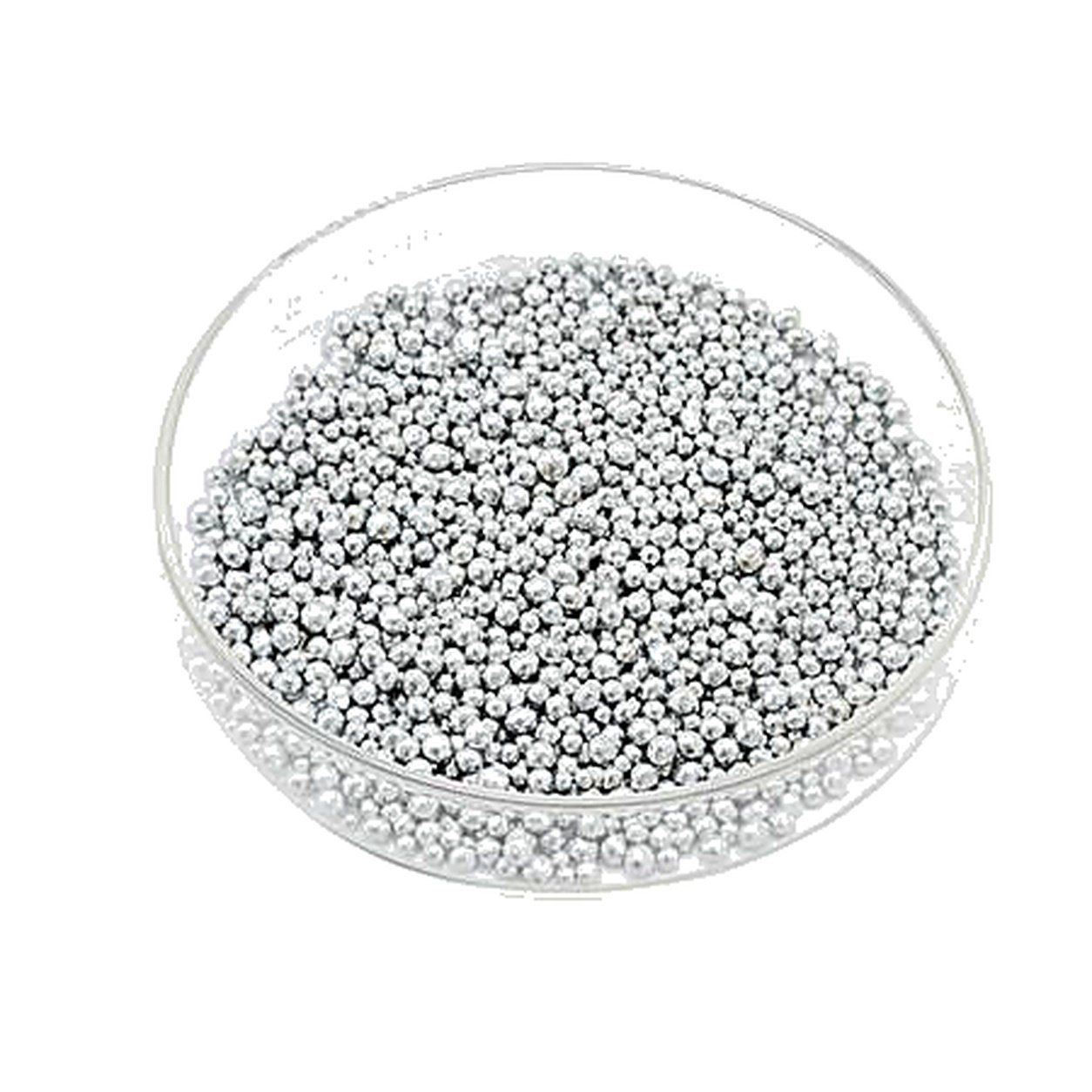

Antimony (Sb) Pellets, 99.99%-99.9999% Purity (Request Current Price)

Antimony (Sb) Pellets, 99.99%-99.9999% Purity (Request Current Price)

Nanostore Antimony (Sb) pellets are source materials supplied for thin-film deposition research, evaporation source loading, alloy preparation, and laboratory materials development. The pellet and piece formats are convenient for weighing, loading, and small-batch experimental workflows where material identity, purity selection, and clean handling are important. Pricing requires a current quote because metal costs vary with purity, package size, and material market conditions.

Key Features

Elemental Source Material
Available purity options include 99.999% (5N), 99.9999% (6N), 99.99% (4N) for research workflows that require controlled metal composition.

Pellet and Piece Formats
Available particle or piece sizes include 0.0787 in-0.236 in (2-6 mm) pieces, 0.0394 in-0.236 in (1-6 mm) pieces, 0.236 in-0.394 in (6-10 mm) pieces. Package options include 1 kg, 100 g, 500 g depending on selected purity and size.

Clean Handling and Storage
Store sealed in a dry environment. Handle with clean gloves or tweezers and avoid contact with oils, dust, moisture, or other contaminants before use.

Technical Specifications

Material: Antimony (Sb)
Form: Pellets
Purity Options: 99.999% (5N), 99.9999% (6N), 99.99% (4N)
Available Size Options: 0.0787 in-0.236 in (2-6 mm) pieces, 0.0394 in-0.236 in (1-6 mm) pieces, 0.236 in-0.394 in (6-10 mm) pieces
Package Options: 1 kg, 100 g, 500 g
Category: Metal Pellets & Pieces
Typical Use: Evaporation source material, PVD research, alloy preparation, and laboratory materials science

Material Properties and Technical Indicators

The following material-property values are provided as reference technical indicators for material selection, source loading, process planning, and thin-film deposition evaluation:

– Element symbol: Sb
– CAS number: 7440-36-0
– Density: 6.697 g·cm⁻³
– Physical state: solid
– Melting point: 630.63 °C
– Boiling point: 1587 °C
– Heat of fusion: 19.79 kJ·mol⁻¹
– Heat of vaporization: 193.43 kJ·mol⁻¹
– Specific heat capacity: 25.23 J·mol⁻¹·K⁻¹
– Magnetic order: diamagnetic
– Thermal expansion coefficient: (25 °C) 11 µm·m⁻¹·K⁻¹
– Thermal conductivity: 24.4 W·m⁻¹·K⁻¹
– Electrical resistivity: (20 °C) 417 nΩ·m
– Young’s modulus: 55 GPa
– Shear modulus: 20 GPa
– Bulk modulus: 42 GPa
– Mohs hardness: 3.0
– Brinell hardness: 294 MPa

Quality-Control and Handling Indicators

Additional technical indicators reflected from the source product page:

– Analytical checks: ICP-MS trace-element analysis; ICP impurity/composition analysis; GDMS trace-metal analysis; carbon/sulfur impurity analysis; nitrogen/oxygen impurity analysis.
– Inspection focus: surface cleanliness measurement; micrometer dimensional inspection; appearance inspection; dimensional verification.
– Handling and storage: sealed dry storage and protective packaging; clean-glove handling to avoid oil, dust, moisture, and surface contamination; careful handling to avoid compression, impact, or chipping.
– Deposition-use context: magnetron sputtering systems; ion sputtering systems; micro/nano fabrication research; semiconductor thin-film development; photovoltaic materials research; flat-panel display coating research.

Common Applications

– antimony evaporation material loading
– semiconductor and chalcogenide precursor research
– thermoelectric material development
– laboratory-scale alloy and compound synthesis
– Academic, industrial, and pilot-scale materials research
