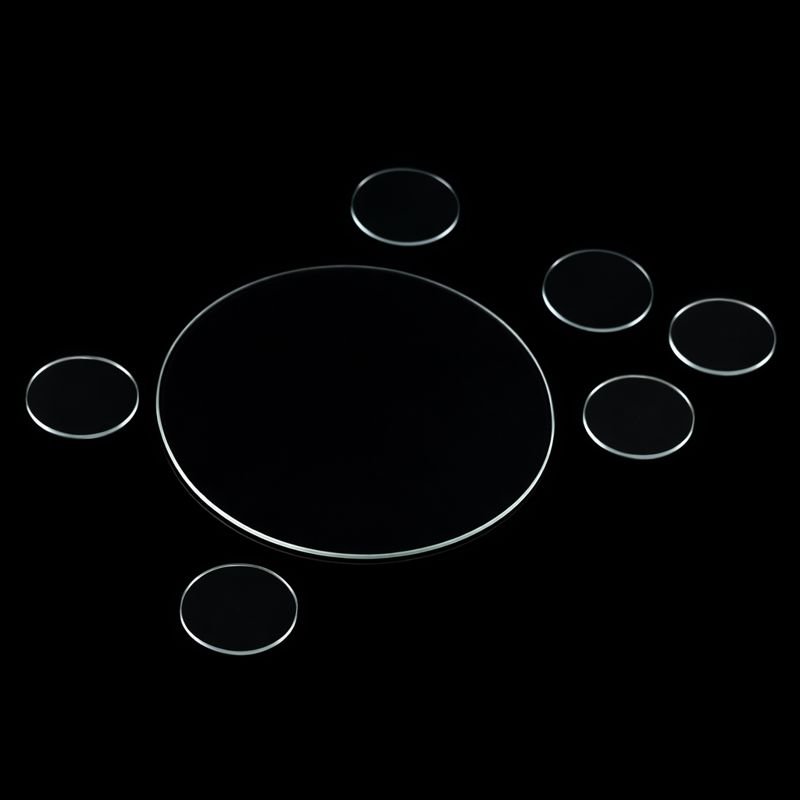

Yttrium Aluminum Garnet (YAG / Y3Al5O12) Single Crystal Wafers
YAG

Yttrium Aluminum Garnet (YAG / Y₃Al₅O₁₂) Single Crystal Wafers

Price range: $600.03 through $716.98

Select an option to request a quote

Yttrium Aluminum Garnet (YAG) Single Crystal Wafers

Physical Properties:
Crystal Structure: Cubic System
Lattice Constant: a=12.01 Angstrom
Density: 4.56 g/cm³
Melting Point: 1970°C
Mohs Hardness: 8.5 Mohs
Growth Method: CZ

Standard Specifications:
Orientation: (111) miscut < 0.3 deg (Available < 0.1 deg)
Orientation: (110) miscut < 0.3 deg (Available < 0.1 deg)
Orientation: (100) miscut < 0.3 deg (Available < 0.1 deg)
Edge Orientation: Available
Surface Roughness: Ra: < 0.5 nm

Option 1

1″ dia × 2 mm, (111), Double-Side Polished, 1″ dia × 2 mm, (111), Single-Side Polished, 2″ dia × 0.5 mm, (111), Double-Side Polished, 2″ dia × 0.5 mm, (111), Single-Side Polished
