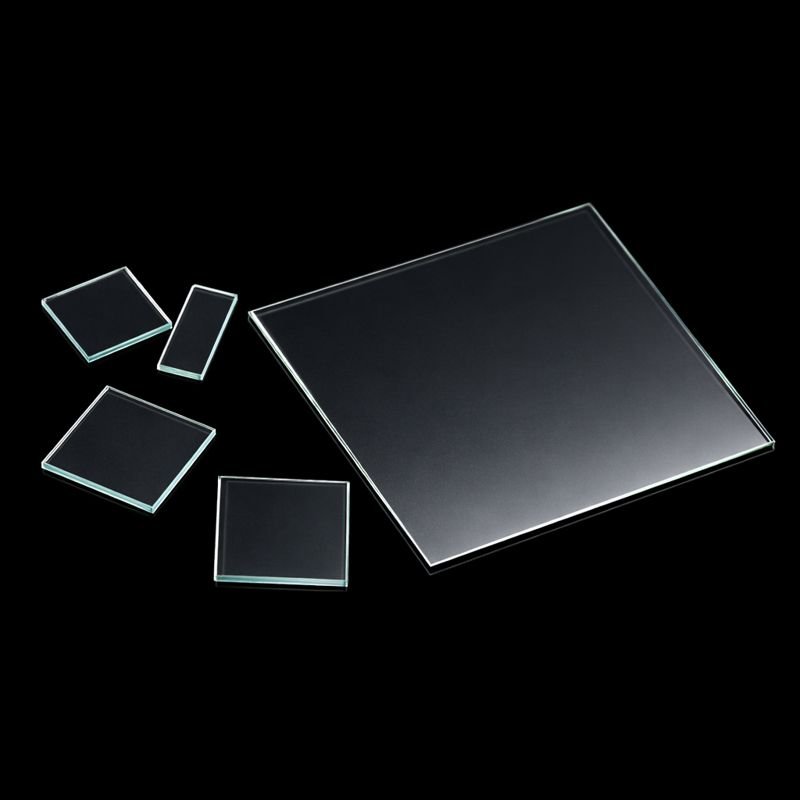

Yttria-Stabilized Zirconia (YSZ) Single Crystal Substrate
YSZ

Yttria-Stabilized Zirconia (YSZ) Single Crystal Substrate

Price range: $54.28 through $148.95

Select an option to request a quote

Yttria-Stabilized Zirconia (YSZ) Single Crystal Substrate

Physical Properties:
Crystal Structure: Cubic System
Lattice Constant: a=5.125 Angstrom
Composition Ratio: Y₂O₃:ZrO₂ = 8:92 mol%
Density: 5.8 g/cm³
Melting Point: 2800°C
Growth Method: Skull Melting

Standard Specifications:
Orientation: (100) miscut < 0.3 deg (Available < 0.1 deg)
Orientation: (110) miscut < 0.3 deg (Available < 0.1 deg)
Orientation: (111) miscut < 0.3 deg (Available < 0.1 deg)
Edge Orientation: Available
Surface Roughness: Ra: < 0.5 nm

Option 1

10 × 10 × 0.2 mm, (100), Double-Side Polished, 10 × 10 × 0.5 mm, (100), Double-Side Polished, 10 × 10 × 0.5 mm, (100), Single-Side Polished, 10 × 10 × 0.5 mm, (110), Double-Side Polished, 10 × 10 × 0.5 mm, (110), Single-Side Polished, 10 × 10 × 0.5 mm, (111), Double-Side Polished, 10 × 10 × 0.5 mm, (111), Single-Side Polished, 5 × 5 × 0.5 mm, (100), Double-Side Polished, 5 × 5 × 0.5 mm, (100), Single-Side Polished, 5 × 5 × 0.5 mm, (110), Double-Side Polished, 5 × 5 × 0.5 mm, (110), Single-Side Polished, 5 × 5 × 0.5 mm, (111), Double-Side Polished, 5 × 5 × 0.5 mm, (111), Single-Side Polished, 6 × 6 × 0.5 mm, (100), Single-Side Polished
