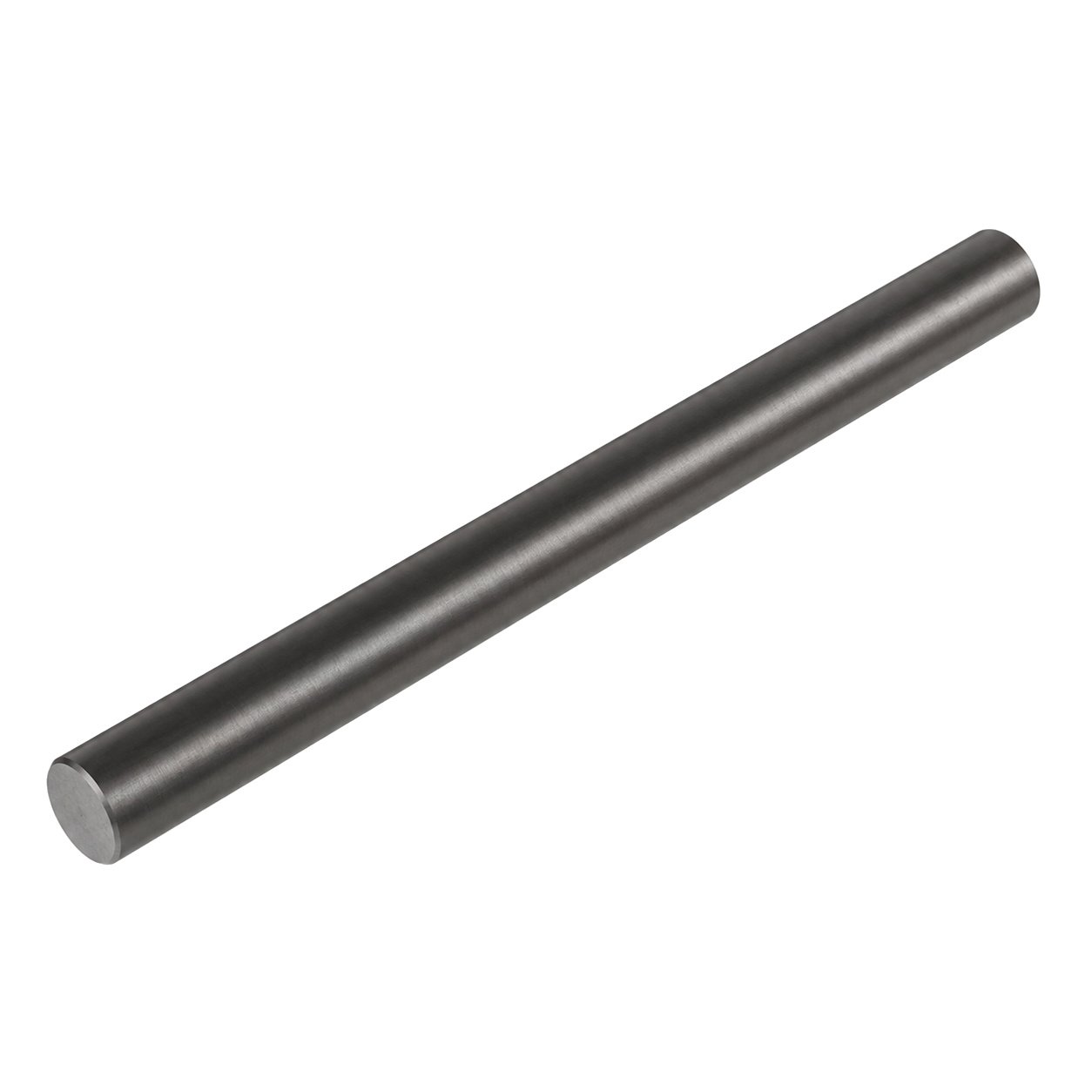

Vanadium (V) Rod, 99.5%-99.9% Purity (Request Current Price)

Vanadium (V) Rod, 99.5%-99.9% Purity (Request Current Price)

Nanostore Vanadium (V) rod is a thin-film and materials-research source format supplied for PVD source loading, evaporation-related workflows, filament or wire studies, alloy preparation, and laboratory materials development. The wire and rod formats support cutting, weighing, fixture loading, and small-batch experimental work where material identity, purity, and clean handling are important. Pricing requires a current quote because wire and rod costs vary with purity, diameter, package size, and material market conditions.

Key Features

Source Material
Available purity options include 99.5% (2N5), 99.9% (3N) for research workflows that require controlled source composition.

Wire and Rod Form Factor
Available diameter and rod-size options include 0.236 in dia x 1.97 in length (6 x 50 mm) rod. Package options include 10 rods, Per rod depending on selected purity and size.

Clean Handling and Storage
Store sealed in a dry environment. Handle with clean gloves or tweezers and avoid contact with oils, dust, moisture, or other contaminants before use.

Technical Specifications

Material: Vanadium (V)
Form: Rod
Purity Options: 99.5% (2N5), 99.9% (3N)
Available Size Options: 0.236 in dia x 1.97 in length (6 x 50 mm) rod
Package Options: 10 rods, Per rod
Category: Wires & Filaments
Typical Use: PVD source loading, wire evaporation research, filament-related studies, alloy preparation, and laboratory materials science

Material Properties and Technical Indicators

The following material-property values are provided as reference technical indicators for material selection, source loading, process planning, and thin-film deposition evaluation:

– Element symbol: V
– CAS number: 7440-62-2
– Density: 6.0 g·cm⁻³
– Physical state: solid
– Melting point: 1910°C
– Boiling point: 3407°C
– Heat of fusion: 21.5 kJ·mol⁻¹
– Heat of vaporization: 444 kJ·mol⁻¹
– Specific heat capacity: 24.89 J·mol⁻¹·K⁻¹
– Crystal structure: body-centered cubic
– Thermal expansion coefficient: (25 °C) 8.4 µm/(m·K)
– Thermal conductivity: 30.7 W·m⁻¹·K⁻¹
– Electrical resistivity: (20 °C) 197 nΩ·m
– Young’s modulus: 128 GPa
– Shear modulus: 47 GPa
– Bulk modulus: 160 GPa
– Mohs hardness: 6.7
– Brinell hardness: 750 MPa
– Poisson’s ratio: 0.37

Quality-Control and Handling Indicators

Additional technical indicators reflected from the source product page:

– Analytical checks: ICP impurity/composition analysis.
– Inspection focus: dimensional verification.

Common Applications

– vanadium rod source loading for materials research
– transition-metal alloy preparation
– functional coating and thin-film studies
– laboratory-scale PVD process development
– Academic, industrial, and pilot-scale materials research
