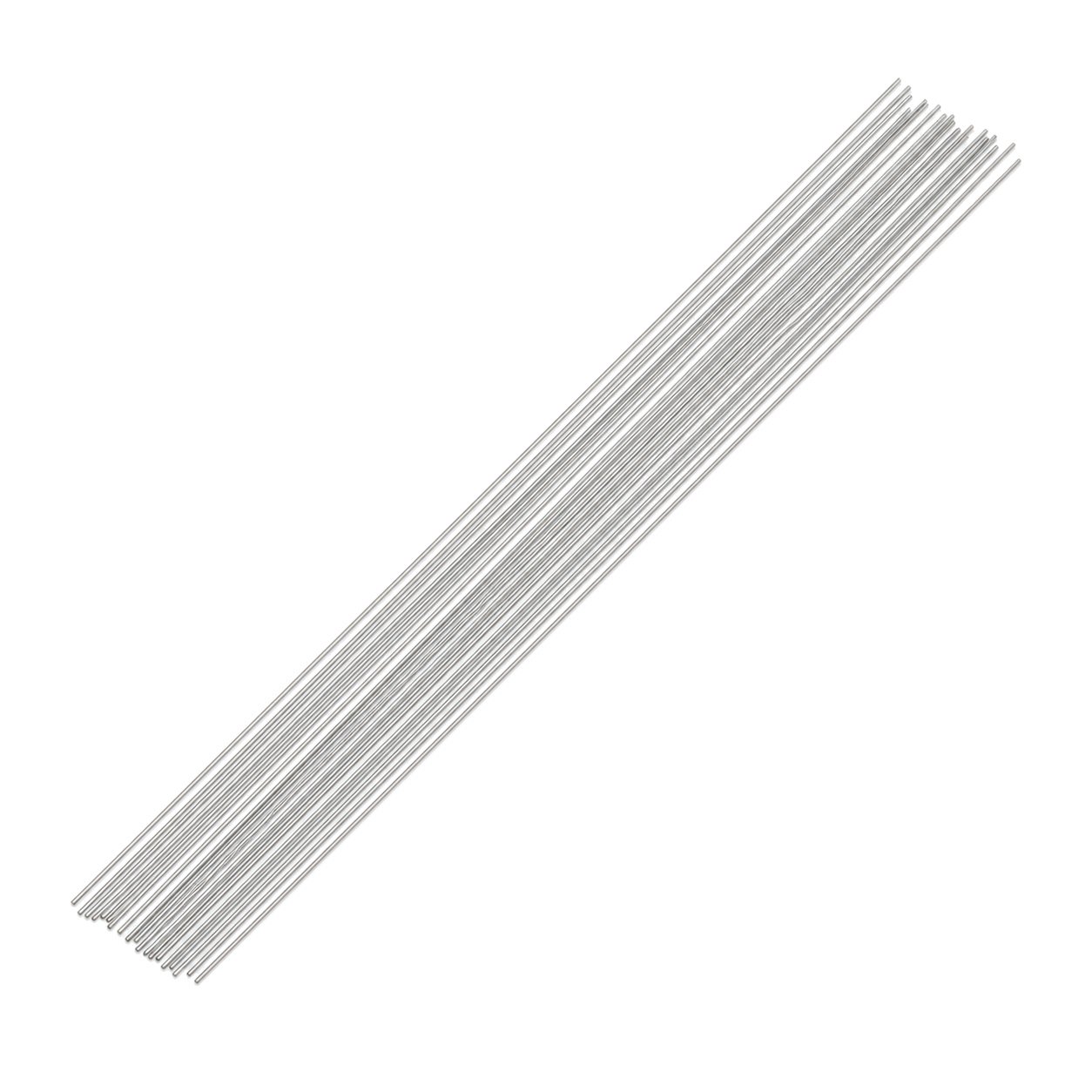

Tantalum (Ta) Wire, 99.95% Purity (Request Current Price)

Tantalum (Ta) Wire, 99.95% Purity (Request Current Price)

Tantalum (Ta) wire is a thin-film and materials-research source format supplied for PVD source loading, evaporation-related workflows, filament or wire studies, alloy preparation, and laboratory materials development. The wire and rod formats support cutting and weighing, fixture loading, and small-batch experimental work where material identity, purity, and clean handling are specified. Pricing requires a current quote because wire and rod costs vary with purity, diameter, package size, and material market conditions.

Features

Source Material
Available purity options include 99.95% (3N5) for research workflows that require controlled source composition.

Wire and Rod Form Factor
Available diameter and rod-size options include 0.0197 in dia (0.5 mm) wire, 0.0394 in dia (1 mm) wire. Package options include 1 kg, 500 g, 100 g depending on selected purity and size.

Clean Handling and Storage
Store sealed in a dry environment. Handle with clean gloves or tweezers and avoid contact with oils, dust, moisture, or other contaminants before use.

Technical Specifications

Material: Tantalum (Ta)
Form: Wire
Purity Options: 99.95% (3N5)
Available Size Options: 0.0197 in dia (0.5 mm) wire, 0.0394 in dia (1 mm) wire
Package Options: 1 kg, 500 g, 100 g
Category: Wires & Filaments
Typical Use: PVD source loading, wire evaporation research, filament-related studies, alloy preparation, and laboratory materials science

Material Properties and Technical Indicators

The following material-property values are provided as reference technical indicators for material selection, source loading, process planning, and thin-film deposition evaluation:

– Element symbol: Ta
– CAS number: 7440-25-7
– Density: 16.69 g·cm⁻³
– Physical state: solid
– Melting point: 3017 °C
– Boiling point: 5458 °C
– Heat of fusion: 36.57 kJ·mol⁻¹
– Heat of vaporization: 732.8 kJ·mol⁻¹
– Specific heat capacity: 25.36 J·mol⁻¹·K⁻¹
– Crystal structure: body-centered cubic
– Speed of sound, thin rod: (20 °C) 3400 m·s⁻¹
– Thermal conductivity: 57.5 W·m⁻¹·K⁻¹
– Young’s modulus: 186 GPa
– Shear modulus: 69 GPa
– Bulk modulus: 200 GPa
– Mohs hardness: 6.5
– Brinell hardness: 800 MPa

Quality-Control and Handling Indicators

– Analytical checks: ICP-MS trace-element analysis; ICP impurity/composition analysis; GDMS trace-metal analysis; carbon/sulfur impurity analysis; nitrogen/oxygen impurity analysis.
– Inspection focus: surface cleanliness measurement; micrometer dimensional inspection; appearance inspection; dimensional verification.
– Handling and storage: sealed dry storage and protective packaging; clean-glove handling to avoid oil, dust, moisture, and surface contamination; careful handling to prevent compression, impact, or chipping.

Common Applications

– tantalum wire source loading
– refractory metal and barrier-layer materials research
– high-temperature alloy preparation
– laboratory PVD process development
– Academic, industrial, and pilot-scale materials research
