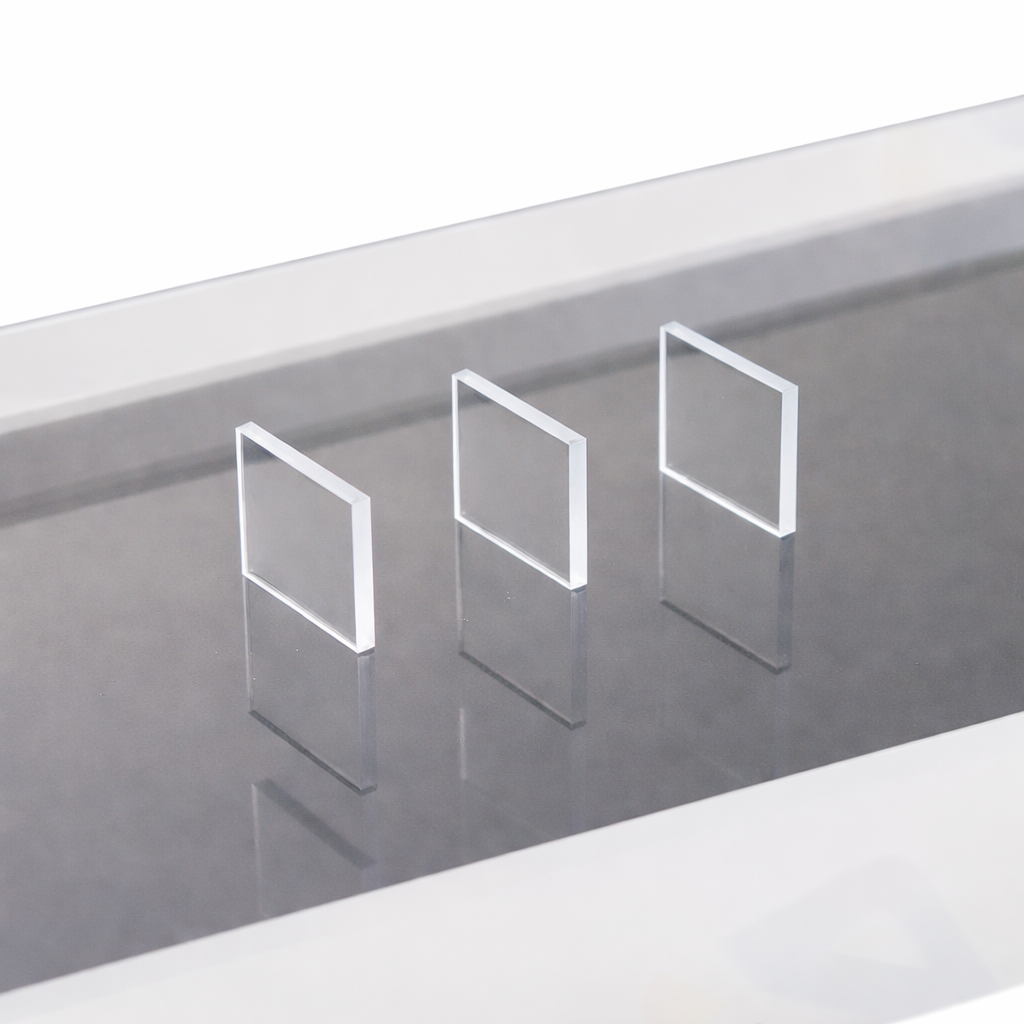

Sodium Chloride (NaCl) Single Crystal Substrate
Product Overview:
NaCl is a water-soluble crystal material and is extremely easy to deliquesce. Please note that because Chemical Mechanical Polishing (CMP) cannot be performed on this material, microscopic scratches may exist on the polished surface.
Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a = 5.6402 Angstrom
– Density: 2.17 g/cm³
– Melting Point: 800 °C
– Mohs Hardness: 2.5
– Purity: 99.9%
– Growth Method: Crystallization Method
Standard Specifications:
– Orientation Accuracy: miscut < 3.0°
– Edge Orientation: Customization required
– Surface Polish: Single-Side or Double-Side Polished
| Option 1 | 10 × 10 × 2 mm, (100), Double-Side Polished, 10 × 10 × 2 mm, (100), Single-Side Polished, 10 × 10 × 2 mm, (110), Double-Side Polished, 10 × 10 × 2 mm, (110), Single-Side Polished, 10 × 10 × 2 mm, (111), Double-Side Polished, 10 × 10 × 2 mm, (111), Single-Side Polished |
|---|
