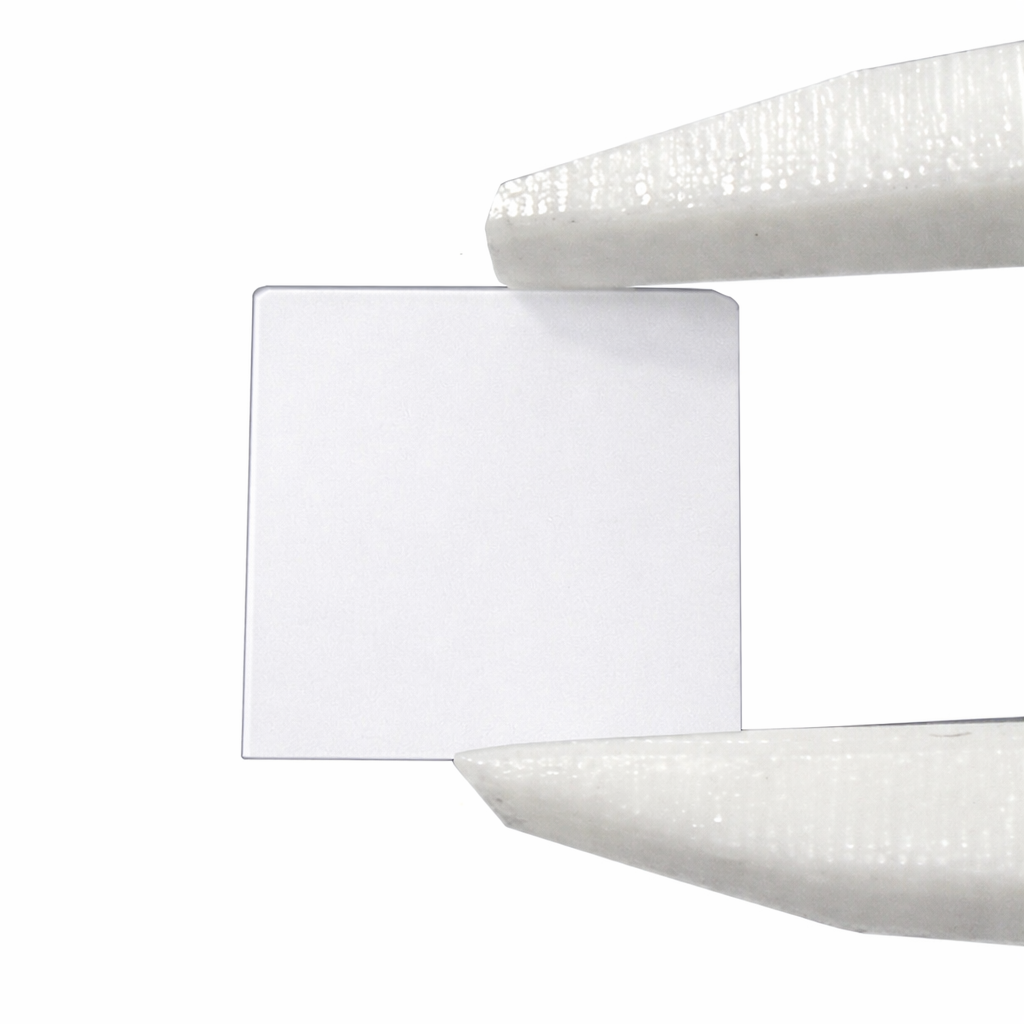

Potassium Tantalate Niobate (KTN) Single Crystal Substrate
Price range: $533.20 through $1,602.43
Potassium Tantalate Niobate (KTN) Single Crystal Substrate
Product Overview:
KTN (KTa₀.₆₅Nb₀.₃₅O₃) is a solid solution of Potassium Tantalate and Potassium Niobate. It exhibits significant electro-optic effects and is used in optical communication devices, optical switching, and holographic storage applications.
Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a = 3.989 ~ 4.0 Angstrom (Depending on Nb doping concentration)
– Density: 7.015 g/cm³
– Melting Point: 1350 °C
– Growth Method: Czochralski (CZ)
Standard Specifications:
– Orientation Accuracy: (100) miscut < 0.3°
– Edge Orientation: Available upon request
– Surface Polish: Single-Side or Double-Side Polished
| Option 1 | 10 × 10 × 0.5 mm, (100), Single-Side Polished, 10 × 10 × 0.5 mm, Double-Side Polished, 5 × 5 × 0.5 mm, (100), Double-Side Polished, 5 × 5 × 0.5 mm, (100), Single-Side Polished |
|---|
