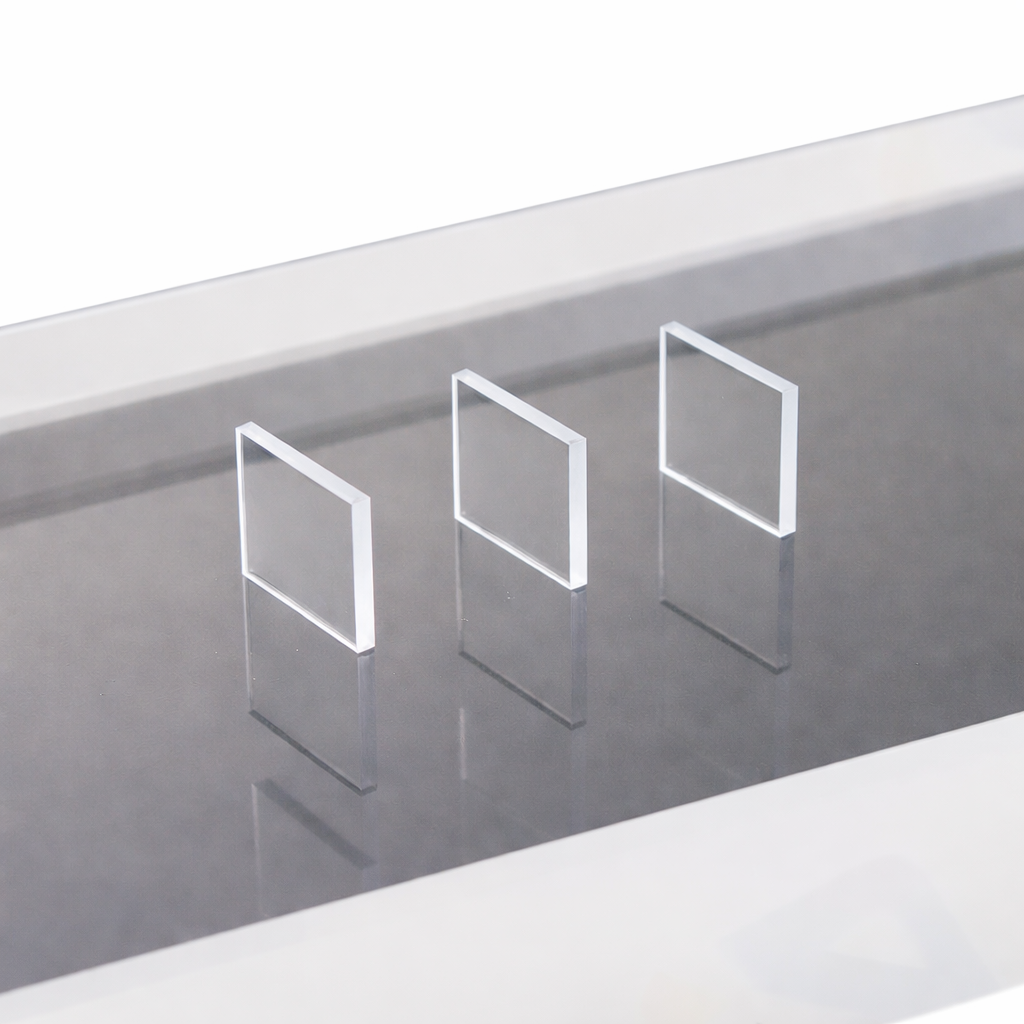

Potassium Chloride (KCl) Single Crystal Substrate
KCl

Potassium Chloride (KCl) Single Crystal Substrate

Price range: $153.13 through $260.33

Select an option to request a quote

Potassium Chloride (KCl) Single Crystal Substrate

Product Overview:
KCl is a water-soluble crystal material and is not suitable for long-term storage. Please note that because Chemical Mechanical Polishing (CMP) cannot be performed on this material, microscopic scratches may exist on the polished surface.

Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a = 6.291 Angstrom
– Density: 1.98 g/cm³
– Purity: 99.9%
– Growth Method: Crystallization Method

Standard Specifications:
– Orientation Accuracy: miscut < 3.0°
– Surface Polish: Single-Side or Double-Side Polished

Option 1

10 × 10 × 1 mm, (100), Double-Side Polished, 10 × 10 × 1 mm, (100), Single-Side Polished, 10 × 10 × 1 mm, (110), Double-Side Polished, 10 × 10 × 1 mm, (110), Single-Side Polished, 10 × 10 × 1 mm, (111), Double-Side Polished, 10 × 10 × 1 mm, (111), Single-Side Polished, 10 × 10 × 1.2 mm, (100), Single-Side Polished, 10 × 10 × 1.5 mm, (100), Single-Side Polished, 10 × 10 × 2 mm, (100), Double-Side Polished, 10 × 10 × 2 mm, (100), Single-Side Polished, 10 × 10 × 2 mm, (110), Double-Side Polished, 10 × 10 × 2 mm, (110), Single-Side Polished, 10 × 10 × 2 mm, (111), Double-Side Polished, 10 × 10 × 2 mm, (111), Single-Side Polished, 13 × 13 × 2 mm, (100), Double-Side Polished, 15 × 15 × 2 mm, (100), Double-Side Polished, 20 × 20 × 3 mm, (100), Double-Side Polished, 25 × 25 × 4 mm, (100), Double-Side Polished
