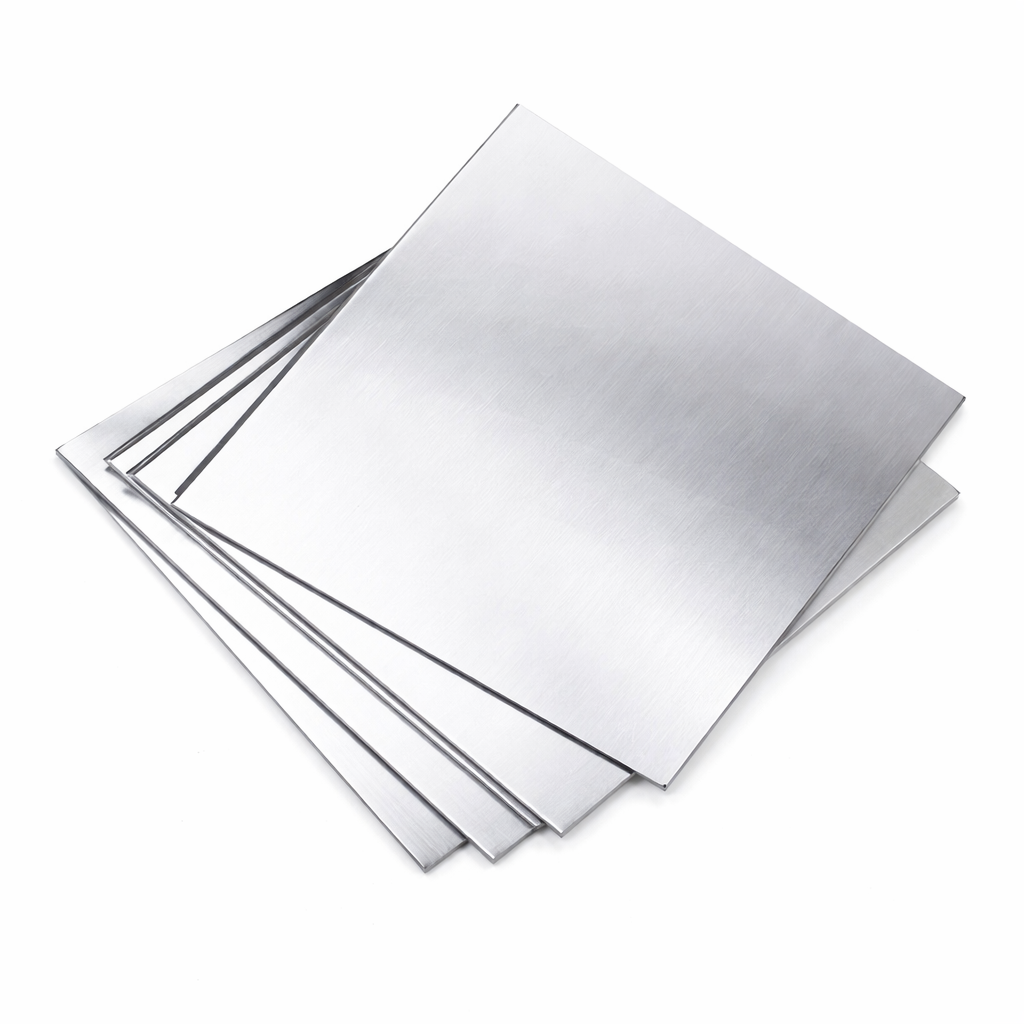

Nickel (Ni) Sheets
Ni

Nickel (Ni) Sheets

Price range: $65.42 through $265.90

Select an option to request a quote

Nickel Sheet (Ni) – Polycrystalline

Nickel Sheet is a polycrystalline metallic substrate used in electroplating, catalysis, thin film deposition, battery research, and surface science applications. Nickel exhibits high corrosion resistance, good mechanical strength, high thermal behavior, and strong magnetic properties at room temperature.

Our nickel sheets are manufactured from nickel (Ni ≥ 99.99%), with consistent chemical composition and consistent performance in research and industrial environments.

Key Features

– : Ni ≥ 99.99%
– high corrosion resistance
– Good electrical and thermal conductivity
– Ferromagnetic at room temperature
– Good ductility and formability
– applicable to polishing and surface treatment
– consistent at high temperatures

Material Properties

Appearance: Silvery-white metallic
Crystal Structure: Polycrystalline
Density: 8.902 g/cm³
Melting Point: 1453 °C
Boiling Point: 2913 °C

Nickel demonstrates high resistance to oxidation and alkaline environments and is used in electrochemical systems.

Applications

– Electroplating anodes
– Battery research (Ni-based systems)
– Catalysis research
– Graphene CVD growth substrate
– Surface science studies
– Thin film deposition
– Corrosion resistance testing
– Vacuum and high-temperature applications

Available Forms

Nickel Sheet
Nickel Foil
Nickel Plate
Custom laser-cut parts available

Thickness and dimensions can be variable upon request.

Optional Industrial Classification (If Required)

Material can be supplied equivalent to:
Nickel 200 (UNS N02200)
Or other commercially pure nickel grades upon request.

Option 1

10 mm x 10 mm x 0.1 mm, 10 mm x 10 mm x 0.5 mm, 10 mm x 10 mm x 1 mm, 10 mm x 10 mm x 1.5 mm, 10 mm x 10 mm x 10 μm, 10 mm x 10 mm x 2 mm, 10 mm x 10 mm x 20 μm, 10 mm x 10 mm x 50 μm, 100 mm x 1 m x 0.1 mm, 100 mm x 1 m x 0.5 mm, 100 mm x 1 m x 5 μm (ultra-thin), 100 mm x 1 m x 50 μm, 100 mm x 100 mm x 5 μm (ultra-thin), 200 mm x 1 m x 10 μm, 200 mm x 1 m x 20 μm
