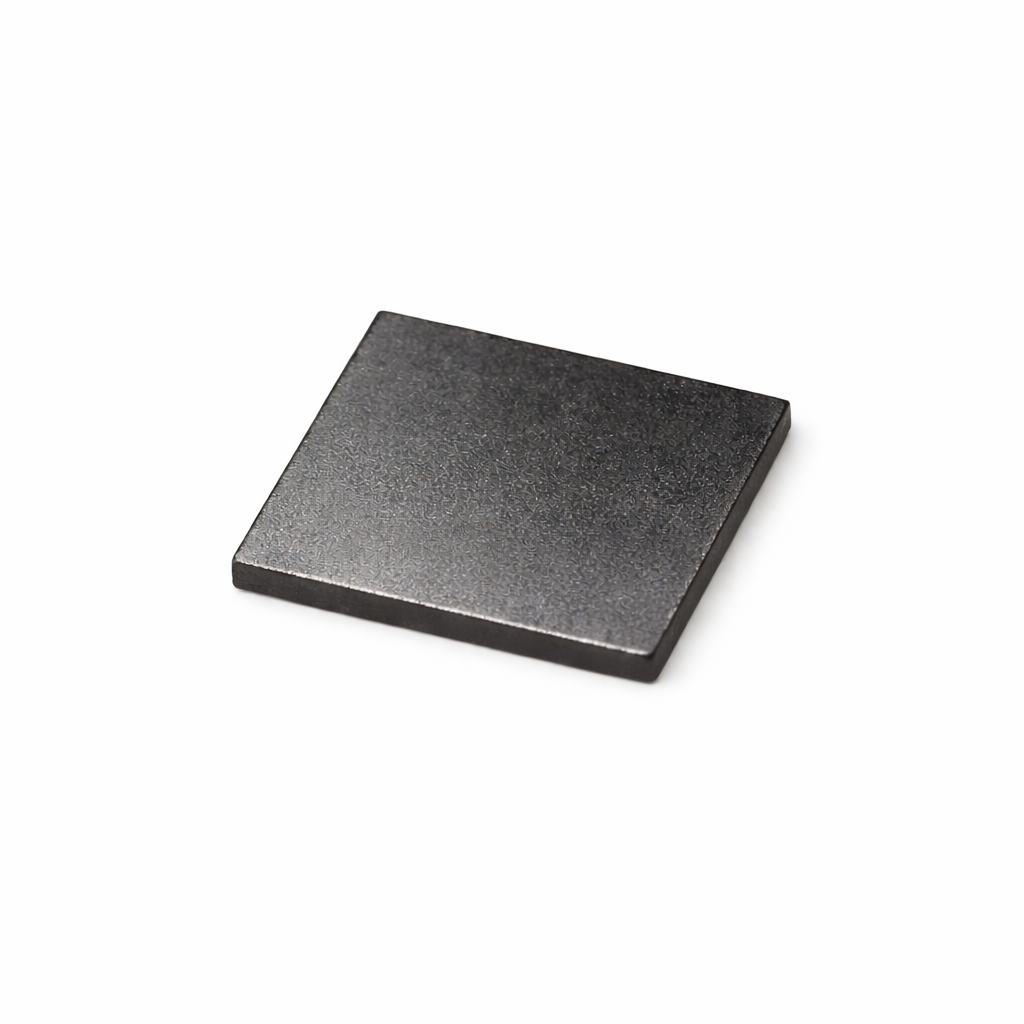

Neodymium Gallium Garnet (NGG / Nd₃Ga₅O₁₂) Single Crystal Substrate
Price range: $313.23 through $783.80
Neodymium Gallium Garnet (NGG / Nd₃Ga₅O₁₂) Single Crystal Substrate
Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a=12.505 Angstrom
– Density: 6.6 g/cm³
– Melting Point: 1550 °C
– Hardness: 7.2 (Mohs)
– Growth Method: Czochralski (CZ)
Standard Specifications:
1. Orientation
– (111) miscut < 0.3° (customizable <0.1°)
2. Edge Orientation
– (110)
3. Surface Quality
– Surface Roughness: Ra < 0.5 nm
– Polish: Single-side polished / Double-side polished
| Option 1 | 10 × 10 × 0.5 mm, (111), Double-Side Polished, 10 × 10 × 0.5 mm, (111), Single-Side Polished, 5 × 5 × 0.5 mm, (111), Double-Side Polished, 5 × 5 × 0.5 mm, (111), Single-Side Polished |
|---|
