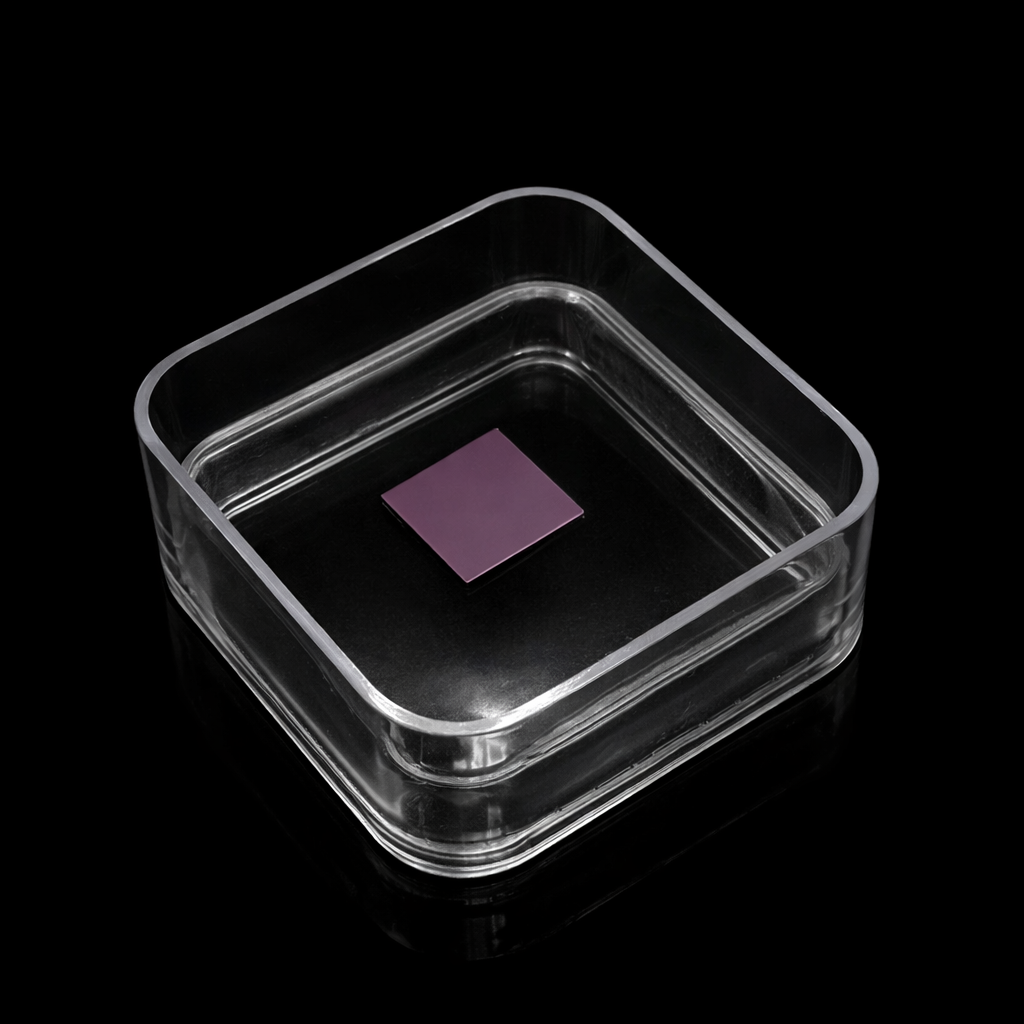

Neodymium Gallate (NdGaO₃) Single Crystal Substrate
Physical Properties:
– Crystal Structure: Orthorhombic System
– Lattice Constants: a=5.428 Angstrom, b=5.498 Angstrom, c=7.708 Angstrom
(Angles: a(100) θ=17°20’; b(010) θ=16°52’; c(001) θ=12°04’)
– Density: 7.57 g/cm³
– Melting Point: 1600 °C
– Hardness: 5.9 (Mohs)
– Growth Method: Czochralski (CZ)
Standard Specifications:
1. Orientation
– (110) miscut <0.3° (customizable <0.1°)
– (100) miscut <0.3° (customizable <0.1°)
– (001) miscut <0.3° (customizable <0.1°)
– (010) miscut <0.3° (customizable <0.1°)
– (111) miscut <0.3°
2. Edge Orientation
– Available
3. Surface Quality
– Surface Roughness: Ra < 0.5 nm
– Polish: Single-side polished / Double-side polished
| Option 1 | 10 × 10 × 0.5 mm, (001), Double-Side Polished, 10 × 10 × 0.5 mm, (001), Single-Side Polished, 10 × 10 × 0.5 mm, (100), Double-Side Polished, 10 × 10 × 0.5 mm, (100), Single-Side Polished, 10 × 10 × 0.5 mm, (110), Double-Side Polished, 10 × 10 × 0.5 mm, (110), Single-Side Polished, 10 × 5 × 0.5 mm, (110), Double-Side Polished, 10 × 5 × 0.5 mm, (110), Single-Side Polished, 15 × 15 × 0.5 mm, (110), Double-Side Polished, 15 × 15 × 0.5 mm, (110), Single-Side Polished, 5 × 3 × 0.5 mm, (110), Double-Side Polished, 5 × 3 × 0.5 mm, (110), Single-Side Polished, 5 × 5 × 0.5 mm, (001), Double-Side Polished, 5 × 5 × 0.5 mm, (001), Single-Side Polished, 5 × 5 × 0.5 mm, (100), Double-Side Polished, 5 × 5 × 0.5 mm, (100), Single-Side Polished, 5 × 5 × 0.5 mm, (110), Double-Side Polished, 5 × 5 × 0.5 mm, (110), Single-Side Polished |
|---|
