Nb-doped SrTiO3 Conductive Single Crystal Substrates
Nb-doped SrTiO3 Conductive Single Crystal Substrates – view 2
SrTiO₃

Nb-doped SrTiO₃ Conductive Single Crystal Substrates

Price range: $130.85 through $583.32

Select an option to request a quote

Product Name:
Nb-doped Strontium Titanate (Nb:SrTiO₃) Conductive Single Crystal Substrates

Packaging & Variant Options:

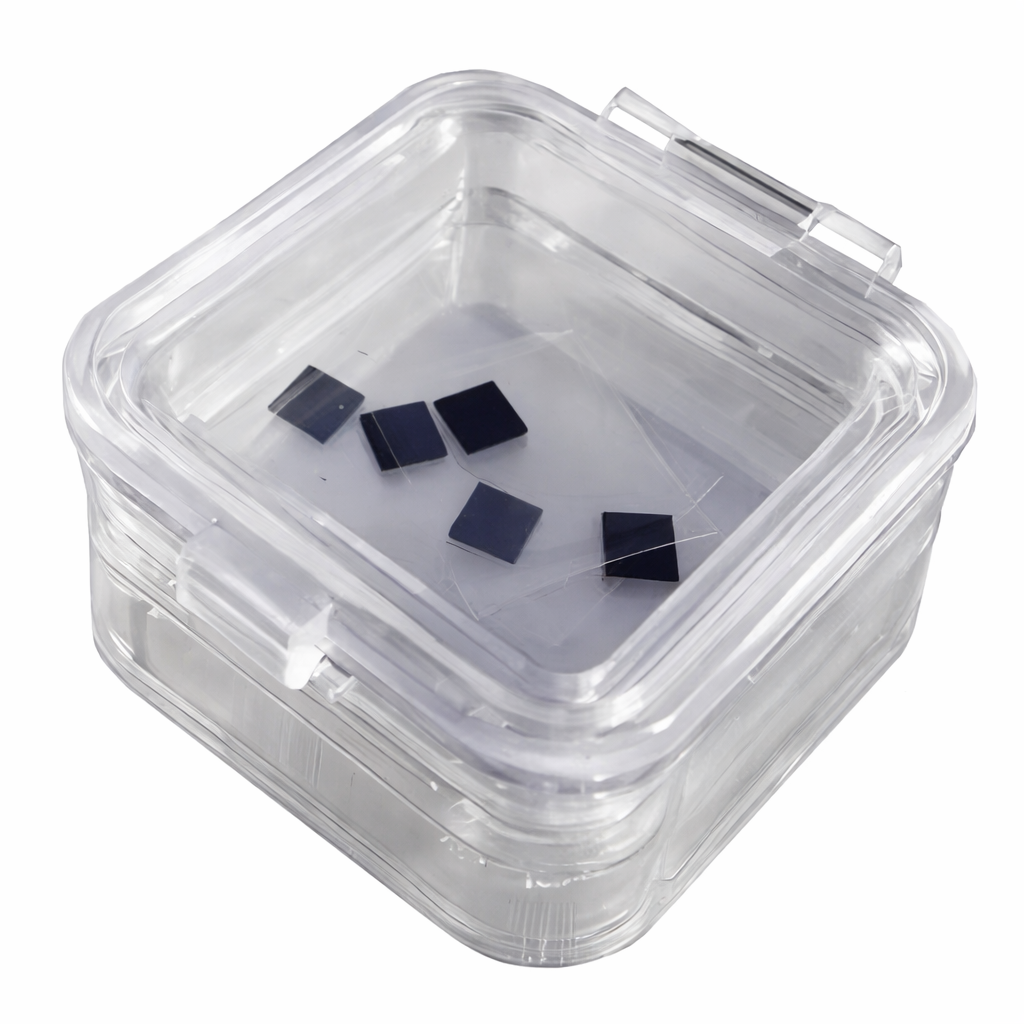

– Packaging: 100-class clean bag, 1000-class clean room

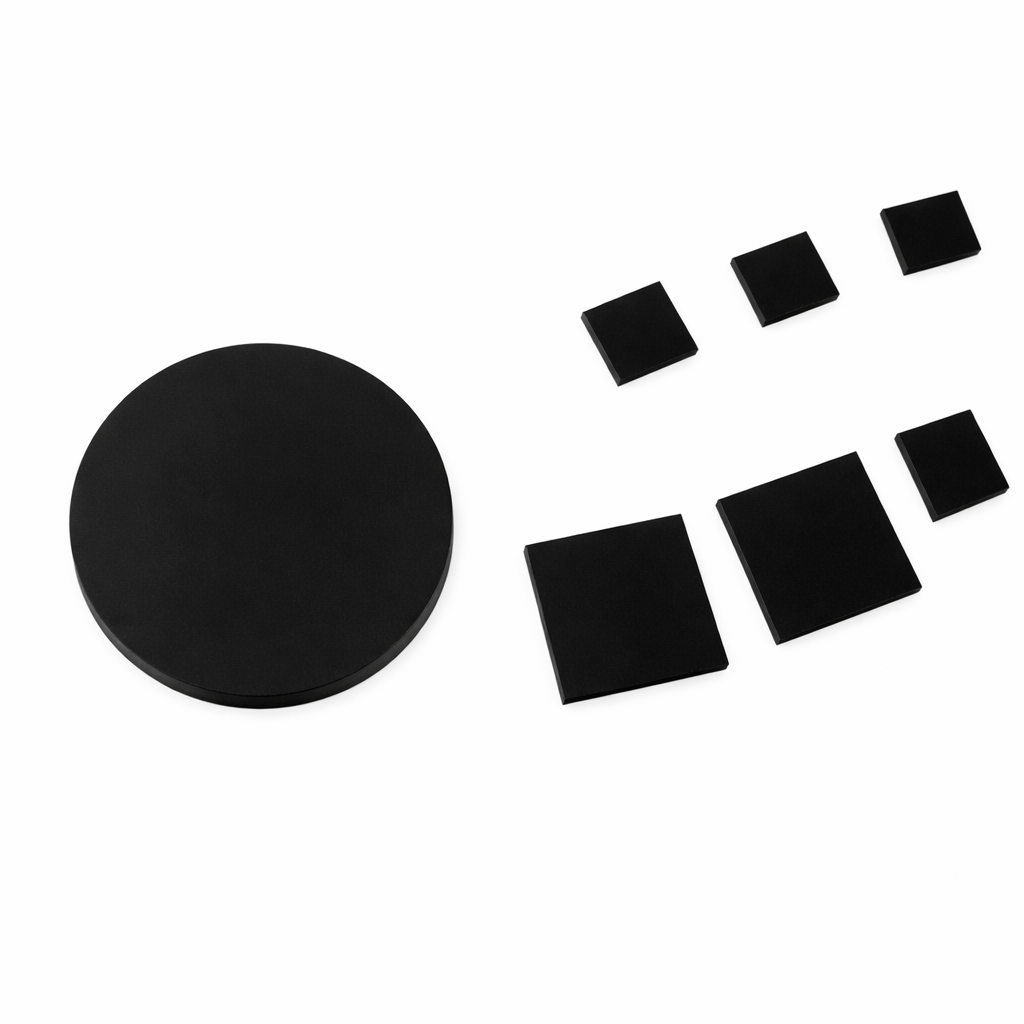

– Available Dimensions (Square/Rectangular):
– 5 × 5 mm, 10 × 3 mm, 10 × 5 mm, 10 × 10 mm, 15 × 15 mm, 20 × 15 mm, 20 × 20 mm
– Available Dimensions (Circular):
– Dia. 15 mm, Dia. 20 mm, Dia. 1″
– Standard Thickness (T): 0.5mm, 1.0mm
– Polishing Status: Single-side Polished (SSP) or Double-side Polished (DSP)

Product Description:
Overview: Nb-doped Strontium Titanate (Nb:SrTiO₃) crystals maintain the structural integrity of pure SrTiO₃ while introducing electrical conductivity via Niobium doping. These conductive substrates are used for providing internal electrodes in thin-film heterostructures and electronic device fabrication. The material is twin-free and available in various doping concentrations to meet specific resistivity requirements.

Electrical Performance Parameters (by Grade):
– Grade A: 1.0 wt% Nb | Resistivity: 0.0035 ohm-cm | Mobility: 9.0 cm²/Vs
– Grade B: 0.7 wt% Nb | Resistivity: 0.0070 ohm-cm | Mobility: 8.5 cm²/Vs
– Grade C: 0.5 wt% Nb | Resistivity: 0.05 ohm-cm | Mobility: 8.5 cm²/Vs
– Grade D: 0.1 wt% Nb | Resistivity: 0.08 ohm-cm | Mobility: 6.5 cm²/Vs

Manufacturing Precision:
– Available Orientations: <100>, <110>, <111>
– Orientation Accuracy: ±0.5°
– Edge Orientation Accuracy: 2° (Specialized request: < 1°)
– Specialized Processing: Off-axis/Miscut angles (1° – 45°) available upon request
– Surface Roughness (Ra): ≤ 5 Angstrom (Atomic level flatness)

Option 1

10 × 10 × 0.5 mm, (100), Double-Side Polished, 10 × 10 × 0.5 mm, (100), Single-Side Polished, 10 × 15 × 0.5 mm, (100), Double-Side Polished, 10 × 15 × 0.5 mm, (100), Single-Side Polished, 10 × 5 × 0.5 mm, (100), Double-Side Polished, 10 × 5 × 0.5 mm, (100), Single-Side Polished, 15 × 15 × 0.5 mm, (100), Double-Side Polished, 15 × 15 × 0.5 mm, (100), Single-Side Polished, 5 × 5 × 0.5 mm, (100), Double-Side Polished, 5 × 5 × 0.5 mm, (100), Single-Side Polished, 5 × 5 × 0.5 mm, (110), Double-Side Polished, 5 × 5 × 0.5 mm, (110), Single-Side Polished, 5 × 5 × 0.5 mm, (111), Double-Side Polished, 5 × 5 × 0.5 mm, (111), Single-Side Polished
Option 2

0.1% wt, 0.5% wt, 0.7% wt, 1 % wt
