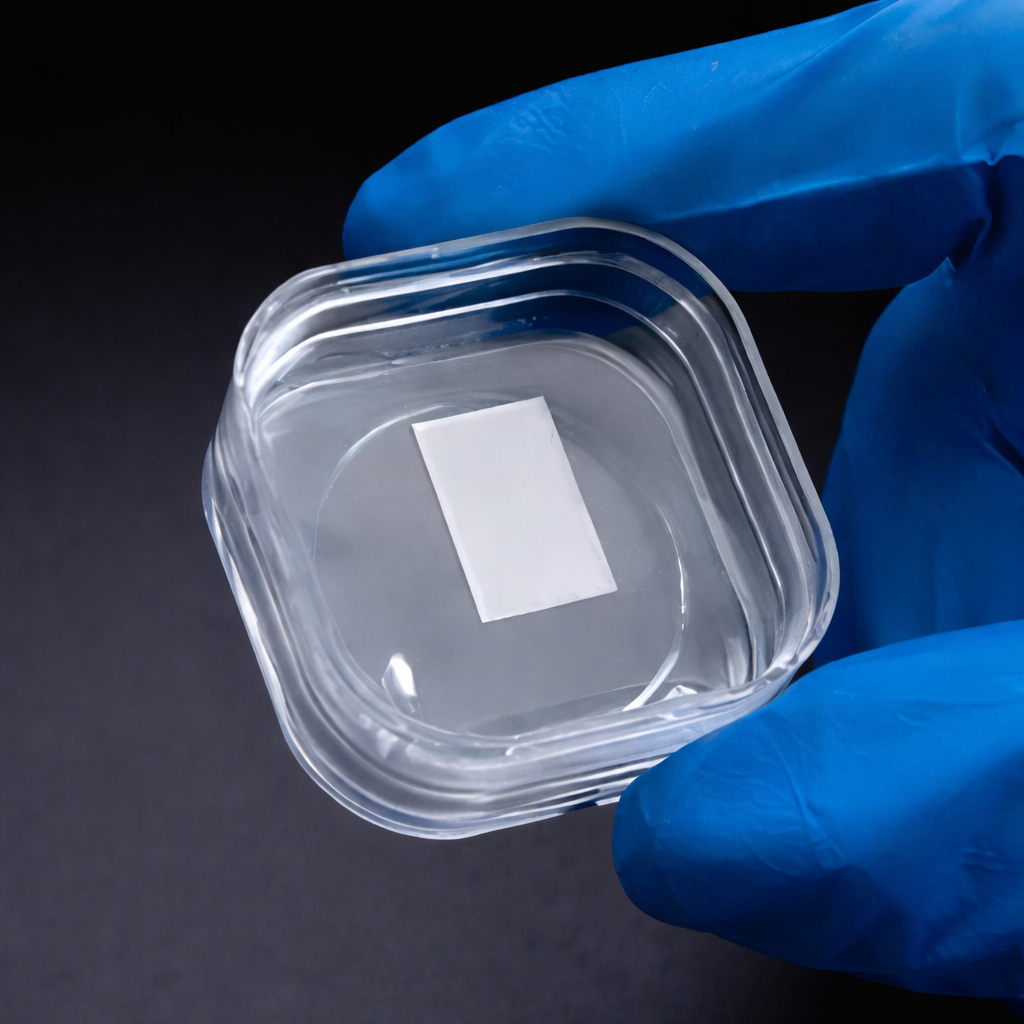

Magnesium Aluminate (MgAl₂O₄) Single Crystal Substrate
Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a = 8.085 Angstrom
– Density: 3.64 g/cm³
– Melting Point: 2130 °C
– Mohs Hardness: 8
– Growth Method: Czochralski (CZ)
Standard Specifications:
– Orientation Accuracy: miscut < 0.3° (< 0.1° available upon request)
– Surface Roughness: Ra < 0.5 nm
– Edge Orientation: Available upon request
– Surface Polish: Single-Side or Double-Side Polished
| Option 1 | 10 × 10 × 0.5 mm, (100), Double-Side Polished, 10 × 10 × 0.5 mm, (100), Single-Side Polished, 10 × 10 × 0.5 mm, (110), Double-Side Polished, 10 × 10 × 0.5 mm, (110), Single-Side Polished, 10 × 10 × 0.5 mm, (111), Double-Side Polished, 10 × 10 × 0.5 mm, (111), Single-Side Polished, 5 × 5 × 0.5 mm, (100), Double-Side Polished, 5 × 5 × 0.5 mm, (100), Single-Side Polished, 5 × 5 × 0.5 mm, (110), Double-Side Polished, 5 × 5 × 0.5 mm, (110), Single-Side Polished, 5 × 5 × 0.5 mm, (111), Double-Side Polished, 5 × 5 × 0.5 mm, (111), Single-Side Polished |
|---|
