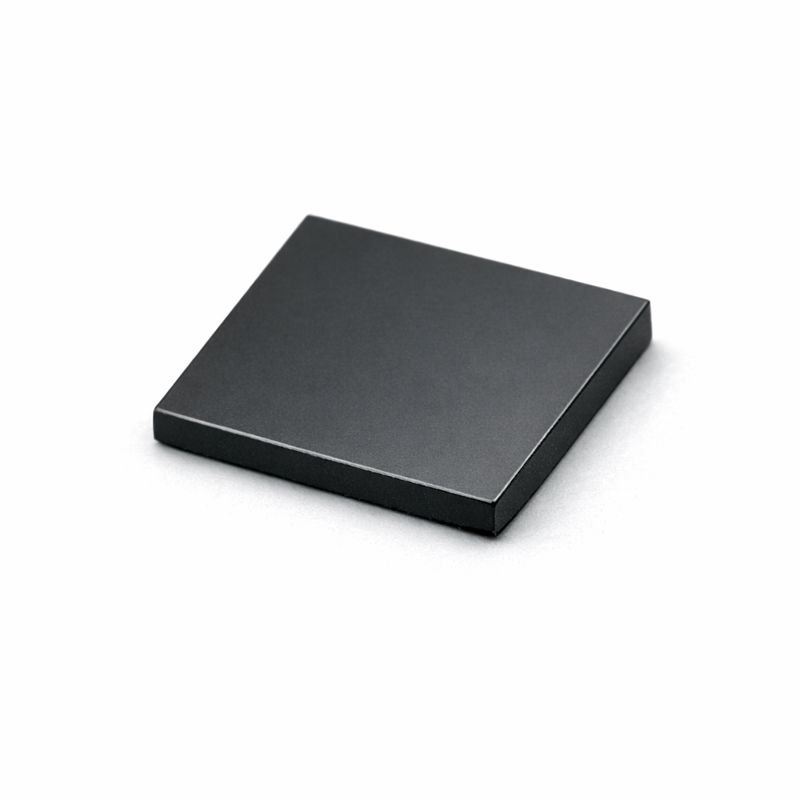

Iron Oxide (Fe₂O₃) Single Crystal Substrate
Physical Properties:
– Crystal Structure: Trigonal
– Lattice Constant: a=b=5.04Angstrom , c=13.77Angstrom
– Melting Point: 1539~1569 °C
– Density: 5.2~5.3 g/cm³
– Mohs Hardness: 5.5~6.5 (Mohs)
– Streak: bright red to dark red
– Color: metallic-gray , dull to bright red

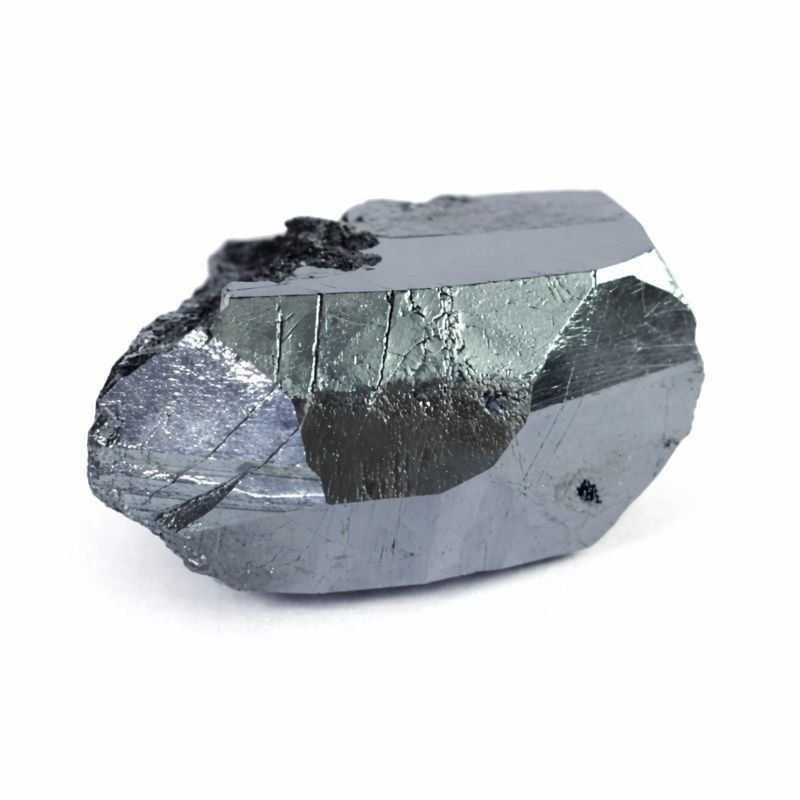

– Growth Method: Natural
Standard Specifications:
– Orientation: (0001) miscut < 0.5°, (11-20) miscut < 0.5°, (10-10) miscut < 0.5°, (1-102) miscut < 0.5°
– Edge orientation: Available
– Dimensions: 5 × 5 × 0.5 mm, 10 × 10 × 0.5mm, up to 20 × 20 mm
– Surface Finish: Single-Side Polished / Double-Side Polished
| Option 1 | 10 × 10 × 0.5 mm, 5 × 5 × 0.5 mm |
|---|---|
| Option 2 | Double-Side Polished, Single-Side Polished |
| Orientation | (0001) |
