Gadolinium Scandium Gallium Garnet (GSGG) Single Crystal Substrates
GSGG

Gadolinium Scandium Gallium Garnet (GSGG) Single Crystal Substrates

Price range: $432.97 through $633.44

Select an option to request a quote

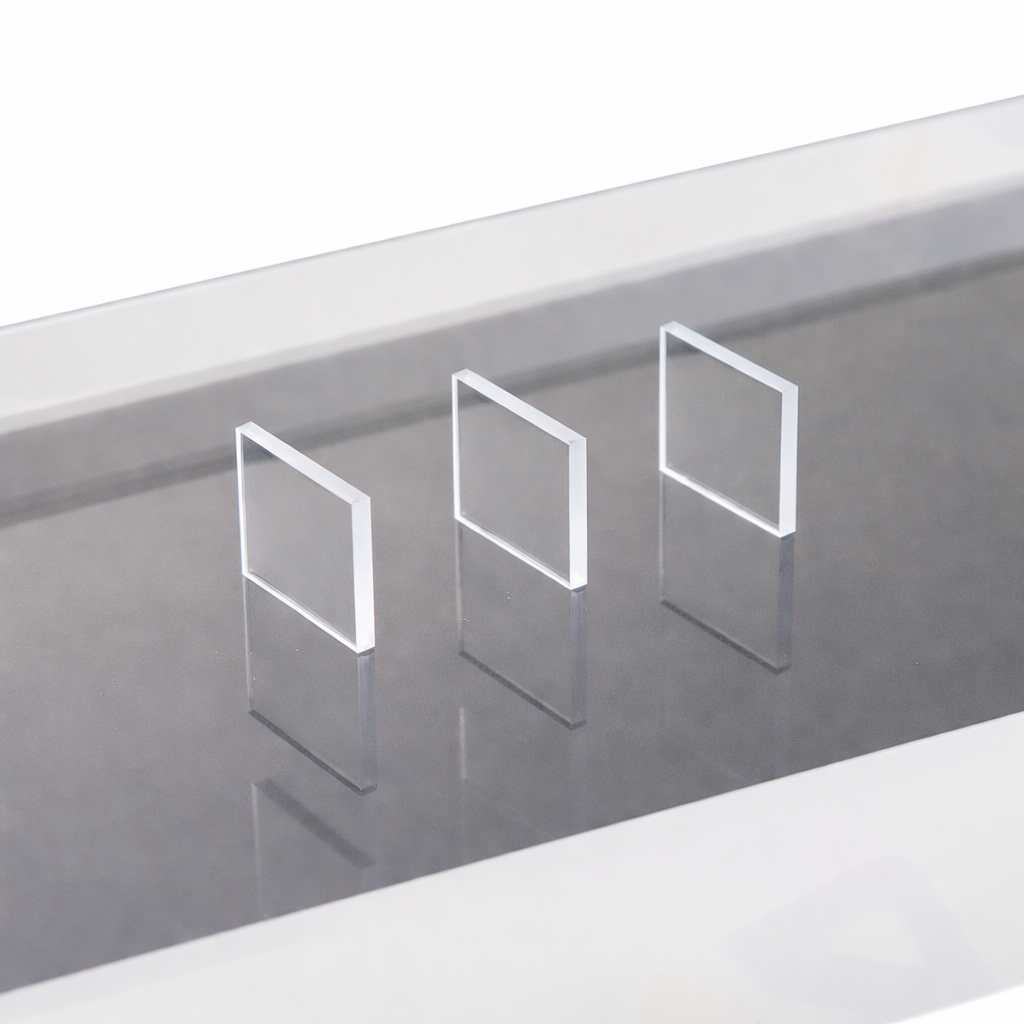

Gadolinium Scandium Gallium Garnet GSGG (Gd₃Sc₂Ga₃O₁₂) Single Crystal Substrates

Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a=12.554 Angstrom
– 2 theta: 50°22′
– Density: 6.44 g/cm³
– Melting Point: 1750°C
– Mohs Hardness: 7.5 (Mohs)
– Refractive Index: 1.95
– Dielectric Constant: 30
– Growth Method: CZ

Standard Specifications:
– Orientation:
(100) miscut < 0.3° (Available <0.1°)
(110) miscut < 0.3° (Available <0.1°)
(111) miscut < 0.3° (Available <0.1°)
– Edge orientation: Available
– Dimensions: 5 x 5 x 0.5 mm, 10 x 10 x 0.5 mm
– Surface Finish: Single-Side Polished / Double-Side Polished
– Surface Roughness: Ra: < 0.5 nm

Option 1

10 × 10 × 0.5 mm, (100), Double-Side Polished, 10 × 10 × 0.5 mm, (100), Single-Side Polished, 10 × 10 × 0.5 mm, (110), Double-Side Polished, 10 × 10 × 0.5 mm, (110), Single-Side Polished, 10 × 10 × 0.5 mm, (111), Double-Side Polished, 10 × 10 × 0.5 mm, (111), Single-Side Polished, 5 × 5 × 0.5 mm, (100), Double-Side Polished, 5 × 5 × 0.5 mm, (100), Single-Side Polished, 5 × 5 × 0.5 mm, (110), Double-Side Polished, 5 × 5 × 0.5 mm, (110), Single-Side Polished, 5 × 5 × 0.5 mm, (111), Double-Side Polished, 5 × 5 × 0.5 mm, (111), Single-Side Polished
