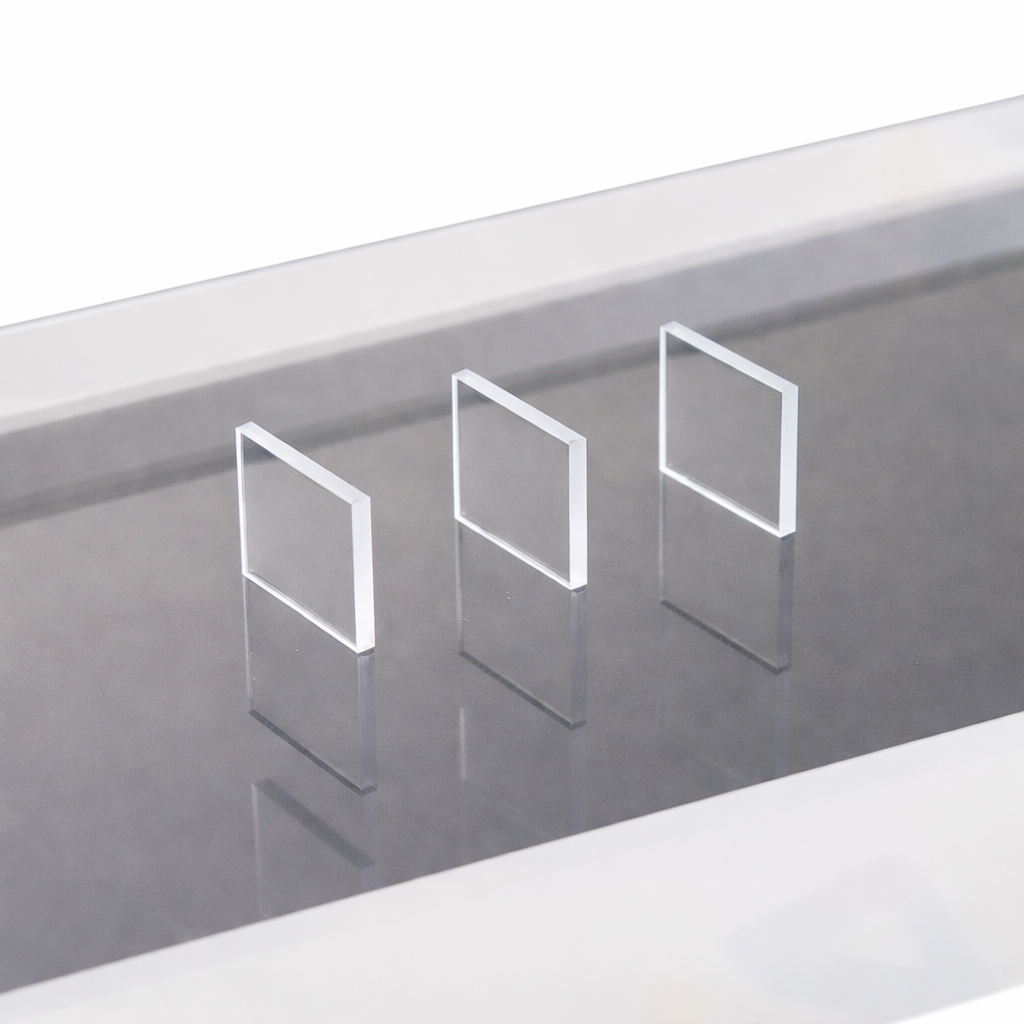

Bismuth Germanate (BGO, Bi₁₂GeO₂₀) Single Crystal Substrates

Price range: $215.78 through $432.97

Select an option to request a quote

BGO Single Crystal (Bismuth Germanate, Bi₁₂GeO₂₀) Substrates

Product Overview
BGO (Bi₁₂GeO₂₀) is a sillenite-type electro-optic and photorefractive single crystal used in photonics, holography, optical information processing. This cubic crystal exhibits photorefractive and nonlinear optical properties, high refractive index, and chemical and mechanical stability. With the stated density and radiation-response characteristics, BGO crystals are used for optical research, electro-optic devices.

Crystal Properties

Chemical Formula: Bi₁₂GeO₂₀
Crystal Structure: Cubic (Sillenite)
Growth Method: Czochralski (CZ)
Standard Orientation: [100]
Lattice Constant: 10.1455 Angstrom
Density: 9.2 g/cm³
Melting Point: 925 °C
Thermal Expansion Coefficient: 7.15 × 10⁻⁶ /°C
Hardness (Mohs): 5

Optical Properties

Radiation Resistance: up to 10⁷ rad
Relative Light Output: 15–20% of NaI(Tl)

Features

Refractive index and optical uniformity
photorefractive and electro-optic response
Density and radiation detection capability
Stable physical and chemical properties
Non-hygroscopic and can be handled
Machinability and polishing properties
For optical and radiation detection applications

Typical Applications

Holographic storage and interferometry
Electro-optic modulation and optical switching
Optical information processing
Spatial light modulators
Laser and photonics research

Available Forms

BGO crystal substrates
Optical-grade polished wafers
Detector-grade crystal blocks
Custom-cut BGO components

Customization

Custom sizes and orientations available
Polishing and double-side polish available
Detector-grade and optical-grade options
OEM and research customization supported

Packaging

Cleanroom packaging
Vacuum-sealed protective packing
Individual crystal box packaging for transport

Option 1

10 × 10 × 0.1 mm, (100), Double-Side Polished, 10 × 10 × 0.5 mm, (100), Double-Side Polished, 10 × 10 × 0.5 mm, (100), Single-Side Polished, 10 × 10 × 0.5 mm, (110), Double-Side Polished, 10 × 10 × 0.5 mm, (110), Single-Side Polished, 10 × 10 × 0.5 mm, (111), Double-Side Polished, 10 × 10 × 0.5 mm, (111), Single-Side Polished, 5 × 5 × 0.5 mm, (100), Double-Side Polished, 5 × 5 × 0.5 mm, (100), Single-Side Polished, 5 × 5 × 0.5 mm, (110), Double-Side Polished, 5 × 5 × 0.5 mm, (110), Single-Side Polished, 5 × 5 × 0.5 mm, (111), Double-Side Polished, 5 × 5 × 0.5 mm, (111), Single-Side Polished
