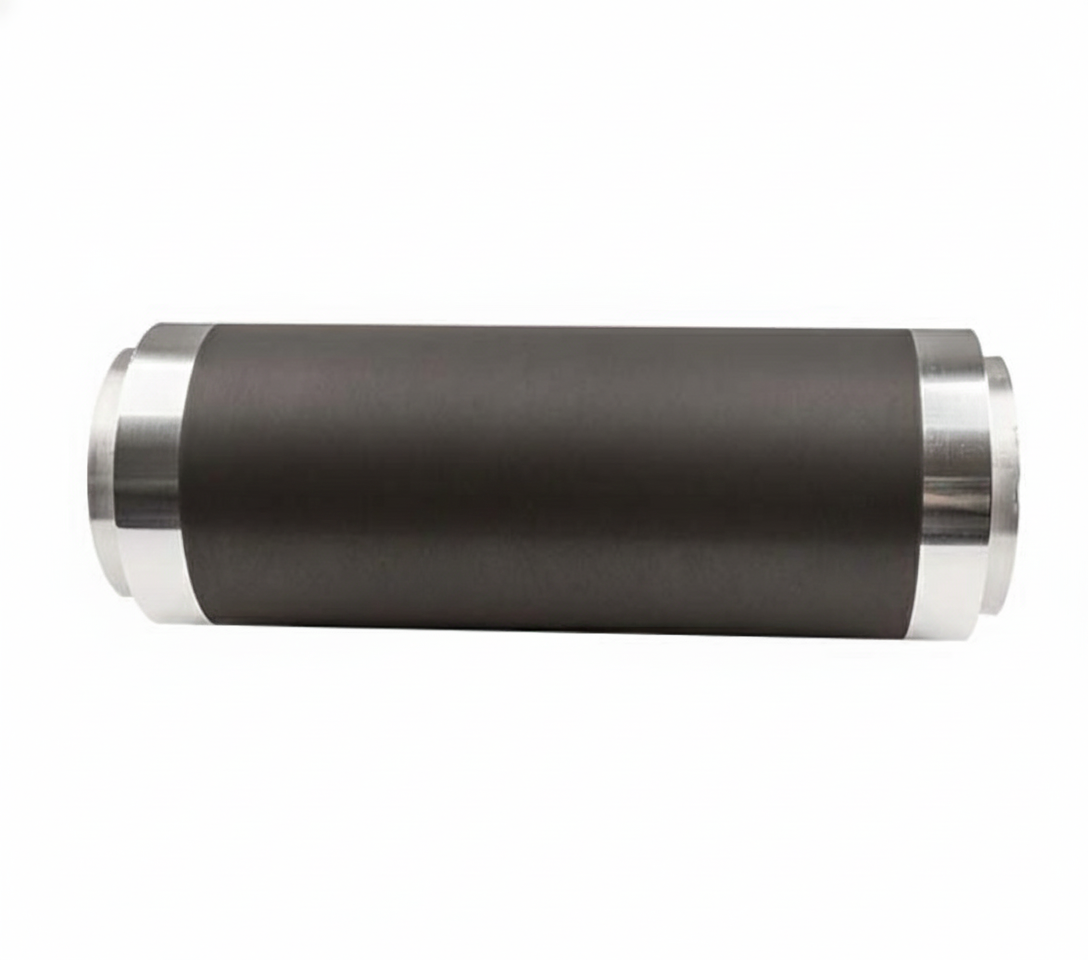

Thermo-responsive Carbon-Coated Aluminum Foil (Dry Electrode Compatible)

Thermosensitive High-Surface-Area Double-Sided Carbon-Coated Aluminum Foil for Dry-Process Electrodes

The material is designed as a current collector for dry-process electrodes.
It consists of an aluminum foil substrate coated on both sides with a thermosensitive, high-surface-area carbon layer. The coating provides conductivity, interfacial contact, and electrode stability under dry-process fabrication conditions.

Specifications

Substrate thickness: 14 µm
Width: 180 mm
Application: Dry-process electrode current collector

Packaging

12 µm aluminum substrate, 180 mm width; double-sided carbon coating, 1 µm per side, 152 mm coated width; 1.5 kg per roll. Custom widths and single-sided or double-sided coating configurations are available upon request.

Parameters

Substrate: High-purity aluminum foil
Total thickness after coating: 14 µm ± 5 µm
Foil width: 180 mm ± 1.0 mm
Carbon-layer loading: 0.8 g/m² ± 0.2 g/m²
Total areal density: 33 g/m² ± 2 g/m²
Splice count per roll: <= 1 Tensile strength: >= 200 MPa
Elongation: >= 2.5%
Surface roughness (Ra): 2.5-3.0 µm
Air-permeability rating: >= 66
Electrical resistance: <= 1 mOhm
Environmental compliance: RoHS compliant (third-party CTI/SGS testing)
Shelf life: 90 days
Core inner diameter: 76 mm ± 1 mm
