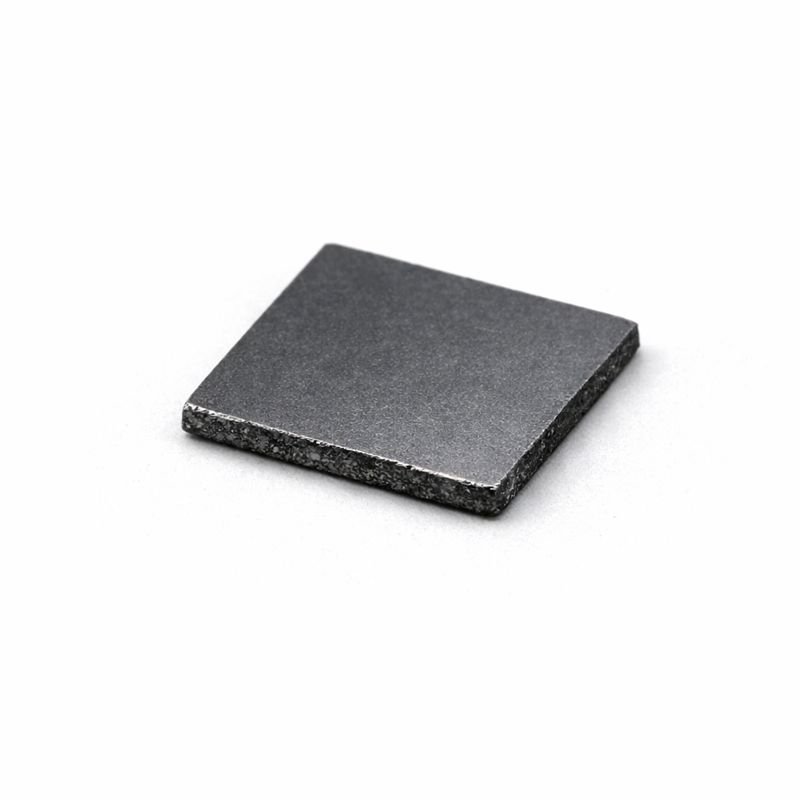

Cobalt Oxide (CoO) Single Crystal Substrate
Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a=4.26 Angstrom
– Melting Point: 1933 °C
– Density: 6.1 g/cm³
– Color: Black
Standard Specifications:
– Orientation: (001) miscut < 0.5°, (100) miscut < 0.5°
– Edge orientation: Available
– Dimensions: 5 × 5 × 0.5mm, 10 × 10 × 0.5 mm
– Surface Finish: Single-Side Polished / Double-Side Polished
– Surface Roughness: Ra: < 0.5nm
| Option 1 | 10 × 10 × 0.5 mm, 5 × 5 × 0.5 mm |
|---|---|
| Option 2 | Double-Side Polished, Single-Side Polished |
| Orientation | (001), (100) |
