PbSnSe₂ Crystals

Description

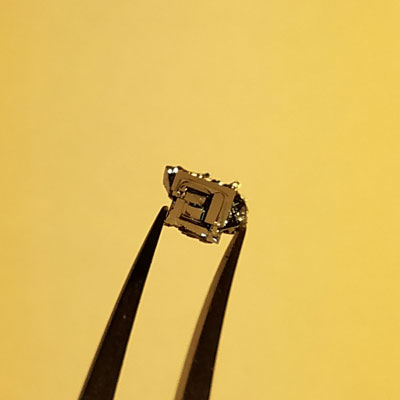

PbSnSe₂ Crystals (Lead Tin Diselenide)

PbSnSe₂ is a layered ternary chalcogenide material with unique thermoelectric and optoelectronic properties. It features a tunable bandgap, high carrier mobility, and strong light absorption, making it a promising material for energy harvesting, infrared sensing, and quantum materials research.

Sample Size Options:
Crystals larger than 10 mm²
Crystals larger than 25 mm²

Material Properties:
Layered Structure: Facilitates exfoliation into thin layers for 2D material research.
Tunable Bandgap: Enables applications in optoelectronics and photonics.
High Thermoelectric Efficiency: Suitable for energy conversion and waste heat recovery.
Optical Absorption: Strong absorption in the infrared range for advanced photonic devices.

Crystal Structure:
Type: Layered structure with van der Waals interactions
Features: Easily cleavable layers for thin-film fabrication and nanoscale research.

Degree of Exfoliation:
Ease of Use: Readily exfoliates into thin layers for advanced research and applications.

Other Characteristics:
Thermoelectric Potential: Ideal for power generation and cooling technologies.
Optoelectronic Performance: High photoconductivity and tunable optical properties for cutting-edge devices.
Quantum Research Potential: Suitable for studying electronic transport and quantum phenomena.

Applications:
Optoelectronics:
Ideal for photodetectors, infrared sensors, and light-emitting devices.
Thermoelectric Devices:
Promising for waste heat recovery and energy harvesting systems.
Quantum Materials Research:
Enables exploration of electronic and transport phenomena in layered chalcogenides.
2D Material Studies:
Perfect for exfoliation into monolayers and integration into van der Waals heterostructures.
Sensors:
High sensitivity for detecting environmental and chemical stimuli.
