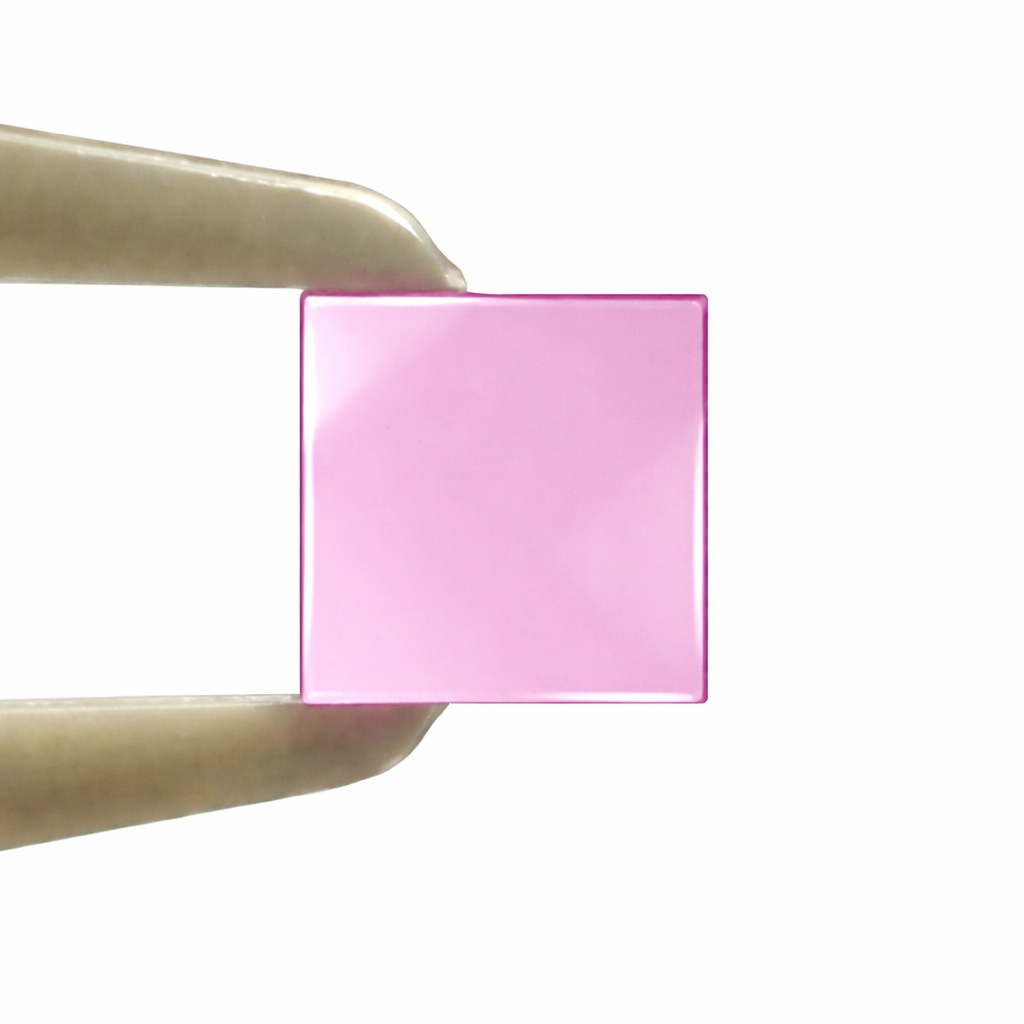

Neodymium Aluminate (NdAlO₃) Single Crystal Substrate
Product Overview:
NdAlO₃ is a perovskite-type single crystal substrate material. It is a substrate for the epitaxial growth of high-temperature superconductor (HTS) thin films (such as YBCO) and magnetic manganite thin films due to its good lattice matching and chemical stability.
Physical Properties:
– Crystal Structure: Cubic System
– Lattice Constant: a = 3.774 Angstrom
– Density: 6.7 ~ 7.14 g/cm³
– Growth Method: Czochralski (CZ)
Standard Specifications:
– Orientation Accuracy: miscut < 0.3° (High precision < 0.1° available upon request)
– Surface Roughness: Ra < 0.5 nm
– Polish: Single-Side or Double-Side Polished
| Option 1 | 10 × 10 × 0.5 mm, 5 × 5 × 0.5 mm |
|---|---|
| Option 2 | Double-side Polished (DSP), Single-side Polished (SSP) |
| Orientation | (100), (110), (111) |
